System Diagram [03/2019 - ]

  1. COMBINATION METER ASSEMBLY DIAGRAM

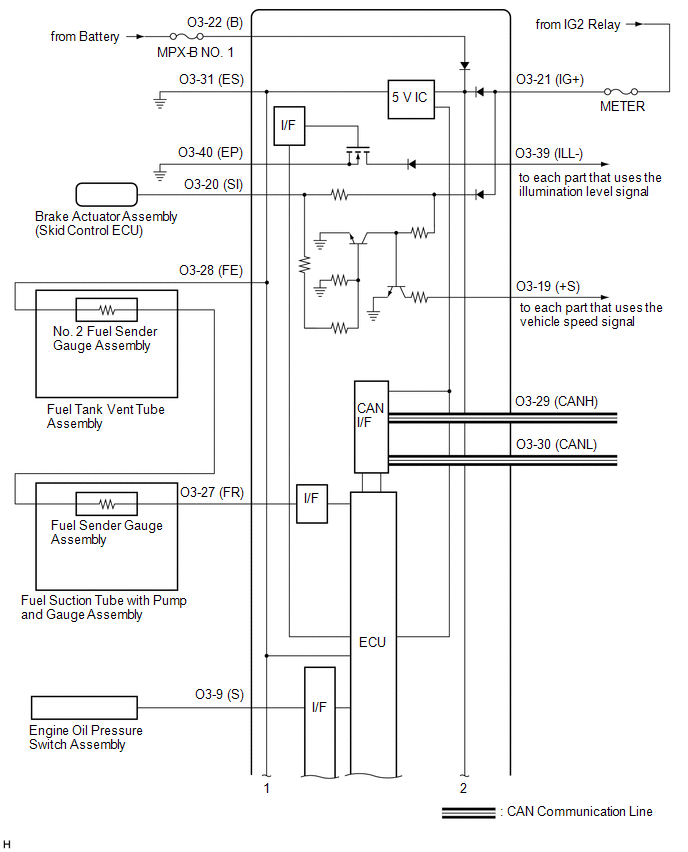

    Fig 1: Combination Meter Assembly System Diagram (1 Of 3)
    GTY959181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

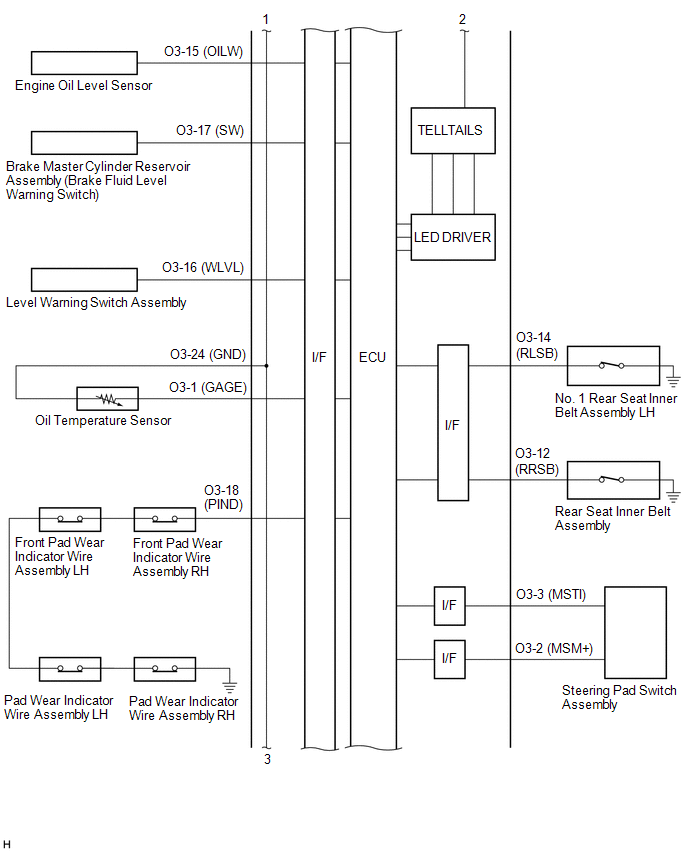

    Fig 2: Combination Meter Assembly System Diagram (2 Of 3)
    GTY960232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

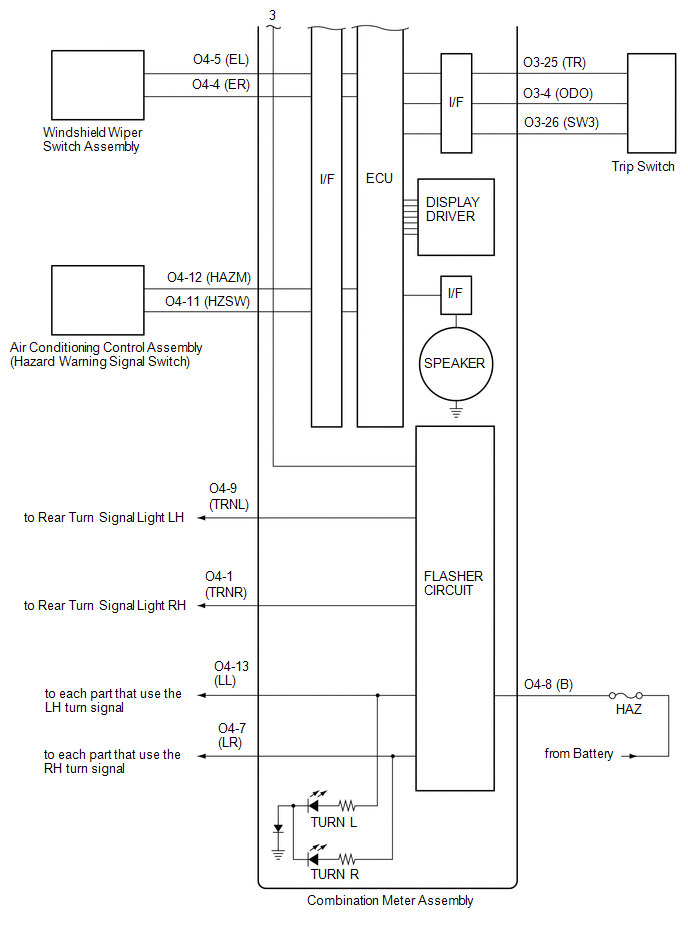

    Fig 3: Combination Meter Assembly System Diagram (3 Of 3)
    GTY961241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. LOCAL BUS COMMUNICATION LINE
    Fig 4: Local Bus Communication Line System Diagram
    GTY961653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
