Automatic Transmission System (Aa81E) - Service Information (2 Of 2)
>>
TCM (for 2GR)
>>
Components [09/2014 - 11/2017]
Components [09/2014 - 11/2017]

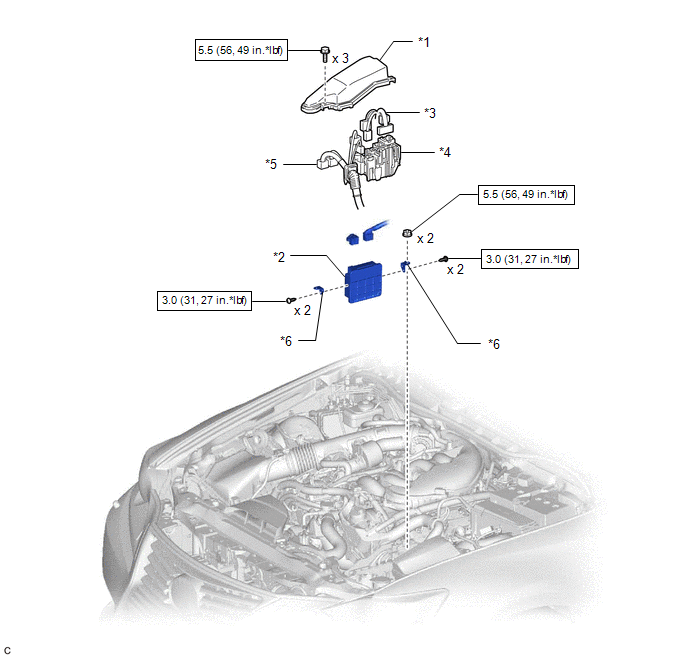

Fig 1: TCM (For 2GR) Replacement Components With Torque Specifications [09/2014 - 11/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
ENGINE ROOM ECU COVER
*2
TCM
*3
ENGINE WIRE
*4
CONNECTOR HOLDER
*5
ECM WIRE HARNESS
*6
BRACKET
N.m (kgf/cm, ft.lbf): Specified torque
-
-
