Components [09/2014 - ]

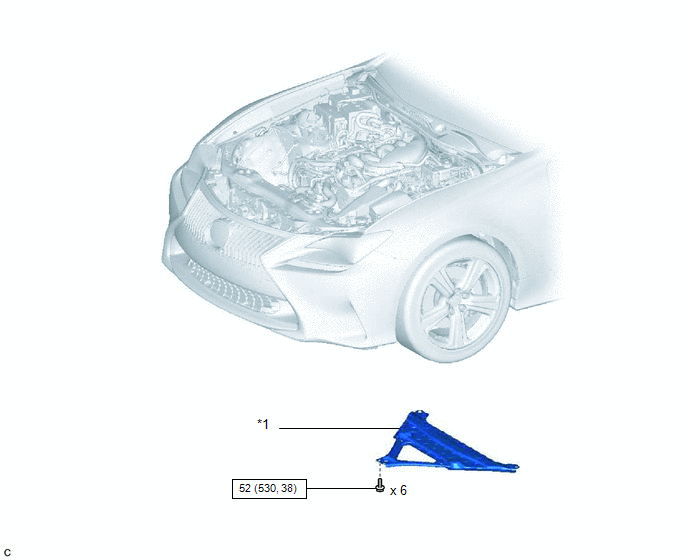

Fig 1: Valve Body Assembly (For 2GR) Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT SUSPENSION MEMBER BRACE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

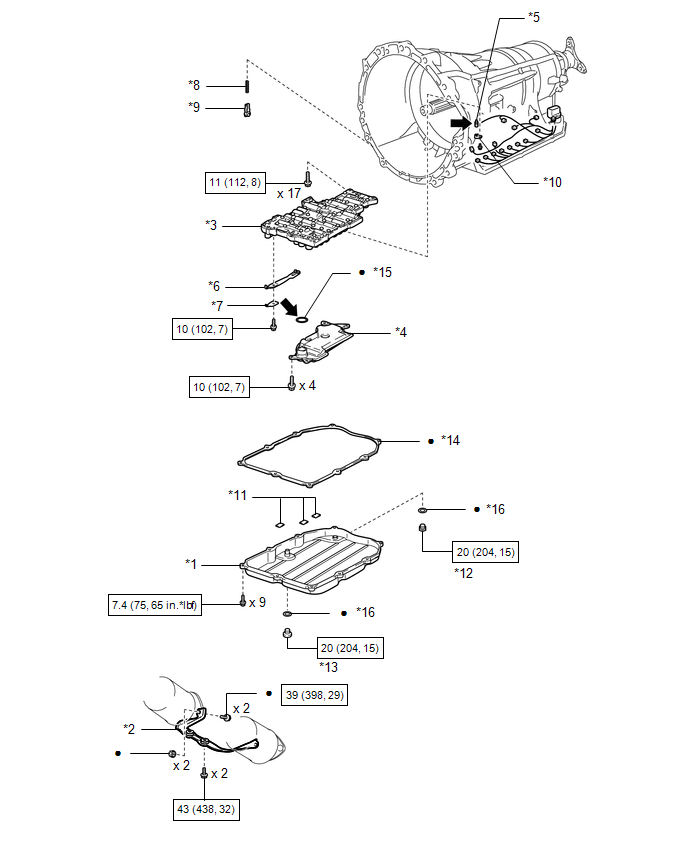

Fig 2: Valve Body Assembly (For 2GR) Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY	*2	NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
*3	TRANSMISSION VALVE BODY ASSEMBLY	*4	VALVE BODY OIL STRAINER ASSEMBLY
*5	ATF TEMPERATURE SENSOR	*6	DETENT SPRING
*7	DETENT SPRING COVER	*8	SPRING
*9	CHECK BALL BODY	*10	LOCK PLATE
*11	TRANSMISSION OIL CLEANER MAGNET	*12	DRAIN PLUG
*13	OVERFLOW PLUG	*14	AUTOMATIC TRANSMISSION OIL PAN GASKET
*15	O-RING	*16	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	ATF WS	-	-

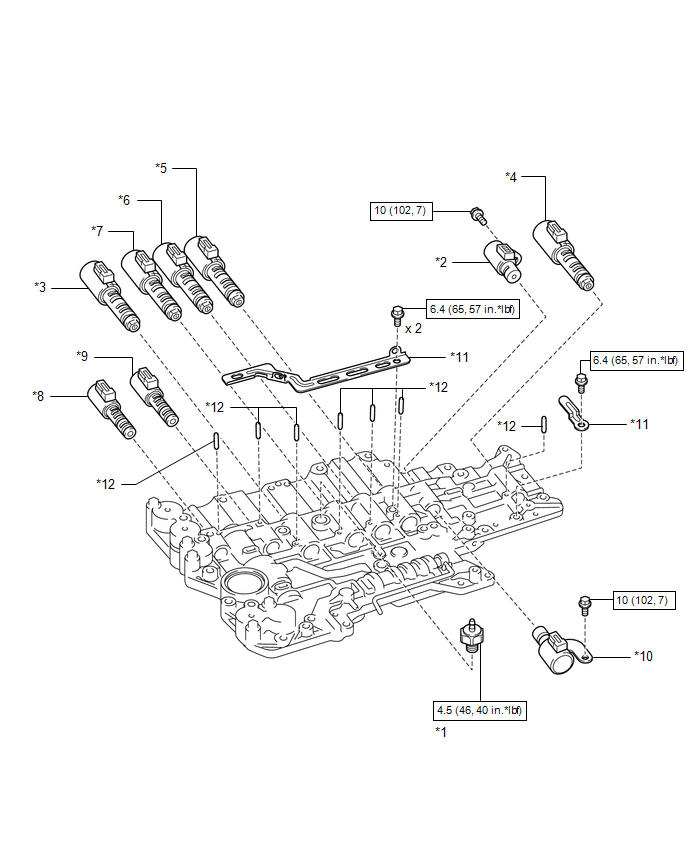

Fig 3: Valve Body Assembly (For 2GR) Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	OIL PRESSURE SWITCH	*2	SHIFT SOLENOID VALVE (SL)
*3	SHIFT SOLENOID VALVE (SL1)	*4	SHIFT SOLENOID VALVE (SL2)
*5	SHIFT SOLENOID VALVE (SL3)	*6	SHIFT SOLENOID VALVE (SL4)
*7	SHIFT SOLENOID VALVE (SL5)	*8	SHIFT SOLENOID VALVE (SLT)
*9	SHIFT SOLENOID VALVE (SLU)	*10	SHIFT SOLENOID VALVE (SR)
*11	SOLENOID LOCK PLATE	*12	STRAIGHT PIN
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
