Components [09/2014 - ]

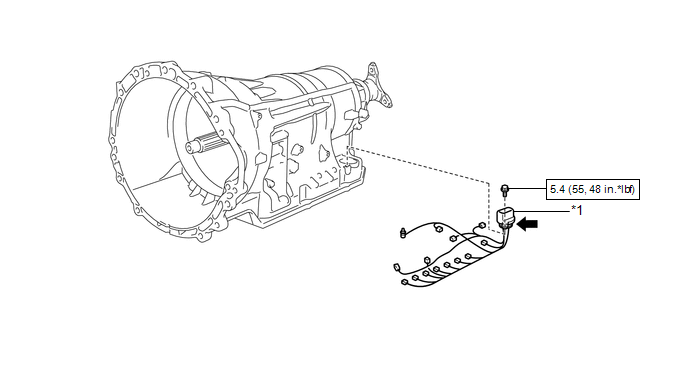

Fig 1: Transmission Wire (For 2GR) Replacement Components With Torque Specifications
GTY508672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION WIRE - -
N.m (kgf/cm, ft.lbf): Specified torque ATF WS
