Components [09/2014 - ]

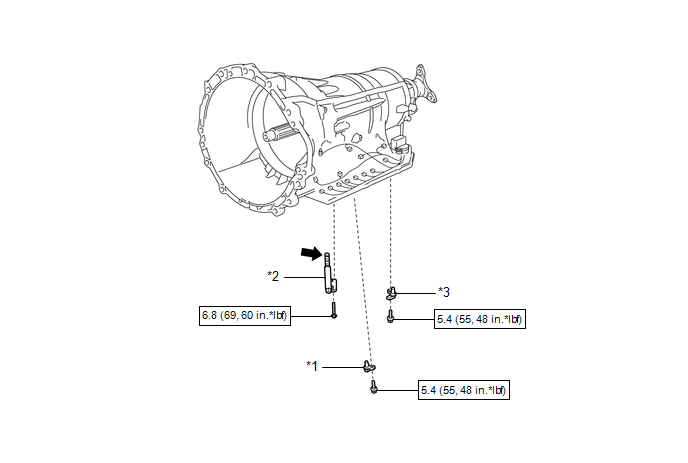

Fig 1: Speed Sensor (For 2GR) Replacement Components With Torque Specifications
GTY497378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TRANSMISSION REVOLUTION SENSOR (NC3) *2 TRANSMISSION REVOLUTION SENSOR (NT)
*3 TRANSMISSION REVOLUTION SENSOR (SP2) - -
N.m (kgf/cm, ft.lbf): Specified torque ATF WS
