Installation [09/2020 - ]: Procedure

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.

1. Check that the control rod of the rear shock absorber assembly is in the position shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	40°
   *b	Control Rod

   NOTE:

   If the control rod is not in the position shown in the illustration, turn the control rod to adjust the position before installing the absorber control actuator.

2. Install the absorber control actuator to the rear actuator support bracket.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Absorber Control Actuator Output Shaft
   *b	Control Rod

   NOTE:

   Make sure to check that the absorber control actuator output shaft and control rod are securely connected.

3. Turn the absorber control actuator 40° clockwise until a click is felt.
   NOTE:

   • Before turning the absorber control actuator, make sure to check that the absorber control actuator output shaft and control rod are securely connected.
   • Do not turn the absorber control actuator more than 40°.
   • Do not drop the absorber control actuator. If it is dropped, replace it with a new one.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   40°

4. Connect the connector.
5. Return the luggage compartment trim cover to its original position.

1. for Type A:

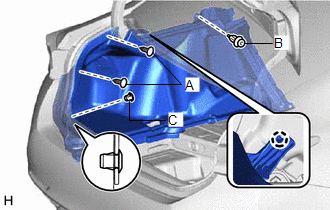

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Engage the claw.
   2. Install the luggage compartment trim cover LH with the 2 clips (A) and clip (B).
   3. Install a new clip (C).
   4. Install the 2 rope hook assemblies with the 2 bolts.
   5. Engage the 4 claws to close the 2 covers.
2. for Type B:

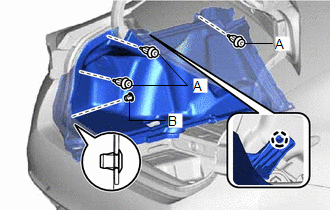

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Engage the claw.
   2. Install the luggage compartment trim cover LH with the 3 clips (A).
   3. Install a new clip (B).
   4. Install the 2 rope hook assemblies with the 2 bolts.
   5. Engage the 4 claws to close the 2 covers.

1. Engage the claw.

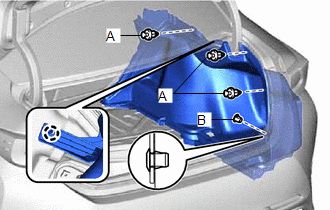

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the luggage compartment trim cover RH with the 3 clips (A).
3. Install a new clip (B).
4. Install the 2 rope hook assemblies with the 2 bolts.
5. Engage the 4 claws to close the 2 covers.
