Removal [09/2014 - ]: Procedure

Refer to PROCEDURE - Step 1 [09/2014 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

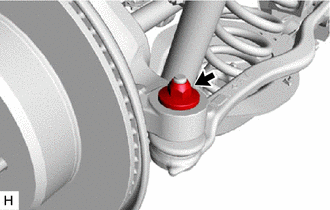

1. Remove the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

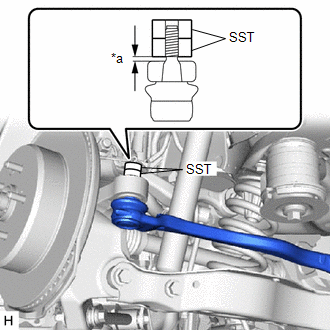

2. Install 2 spacers (SST spacer B) as shown in the illustration.
   • SST: 09960-20010
     1. 09961-02060
   NOTE:

   As SST may be damaged, make sure that the clearance between the rear axle assembly and spacers is 1 mm (0.0394 in.) or more.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	1 mm or more

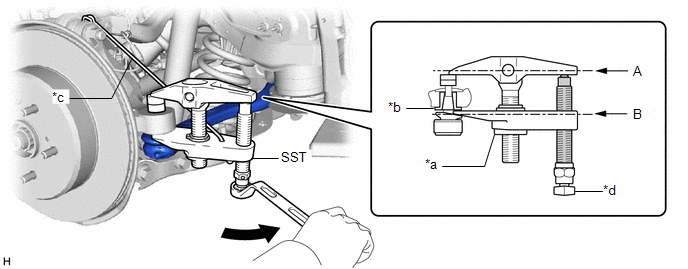

3. Using SST, separate the toe control link sub-assembly from the rear axle assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Nut	*b	Spacer
   *c	Tie string without any slack	*d	Place wrench here
   	Turn		Molybdenum Grease

   • SST: 09960-20010
     1. 09961-02010
     2. 09961-02060
   WARNING:

   Apply molybdenum grease to the threads and tip of the SST bolt.

   NOTE:

   • Install SST so that A and B are parallel.
   • Be sure to place the wrench on the part indicated in the illustration.
   • Be sure to tighten the string firmly to secure SST to the rear upper control arm assembly to prevent SST from falling off.
   • Do not damage the toe control link sub-assembly ball joint dust cover.
   • Make sure that SST is securely positioned on the spacer.
   • If the spacer has come off, replace the rear axle carrier sub-assembly with a new one.
4. Place matchmarks on the No. 2 toe adjust plate, toe adjust cam sub-assembly and rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

5. Remove the nut, No. 2 toe adjust plate, toe adjust cam sub-assembly and toe control link sub-assembly.
   NOTE:

   Hold the toe adjust cam sub-assembly while rotating the nut.
