Removal [11/2017 - ]: Procedure

Refer to PROCEDURE - Step 1 [09/2014 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

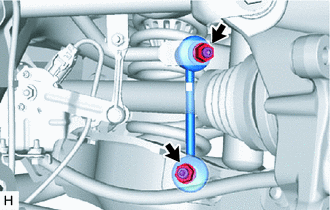

1. Remove the 2 nuts and rear stabilizer link assembly LH.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform the same procedure as for the LH side.

Refer to REMOVAL [11/2017 - 09/2020] , or refer to REMOVAL [09/2020 - 10/2022] , or refer to REMOVAL [10/2022 - ]

1. Remove the 4 bolts, rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushings from the rear suspension member sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 rear No. 1 stabilizer bar brackets from the 2 rear stabilizer bushings.

1. Remove the 2 rear stabilizer bushings from the rear stabilizer bar.
