Removal [09/2014 - 10/2022]: Procedure

Refer to PROCEDURE - Step 1

See step  2

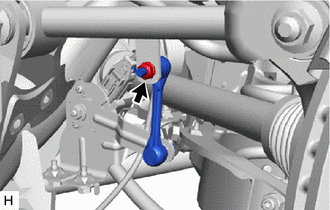

1. Remove the nut and separate the rear height control sensor sub-assembly from the rear No. 1 upper control arm assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  2

Refer to PROCEDURE - Step 6

1. Remove the bolt and nut, and separate the rear No. 1 suspension arm assembly from the rear axle assembly.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  2 [09/2014 - 11/2017], or see step  2 [11/2017 - ]

1. Support the rear No. 2 suspension arm assembly using a jack and wooden block.
   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack

2. Remove the bolt and nut, and separate the rear shock absorber assembly from the rear No. 2 suspension arm assembly.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

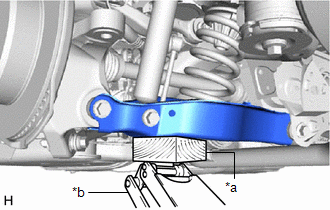

1. Support the rear No. 2 suspension arm assembly using a transmission jack and wooden block.
   WARNING:

   Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.

   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Transmission Jack

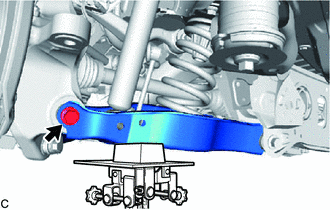

2. Loosen the rear No. 2 suspension arm assembly with the bolt (rear suspension member sub-assembly side).
   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
   • Do not remove the bolt and nut.

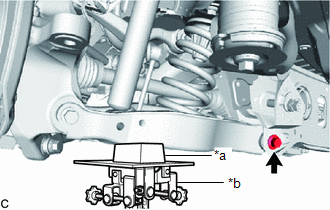

3. Loosen the rear No. 2 suspension arm assembly with the bolt (rear axle assembly side).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
   • Do not remove the bolt and nut.

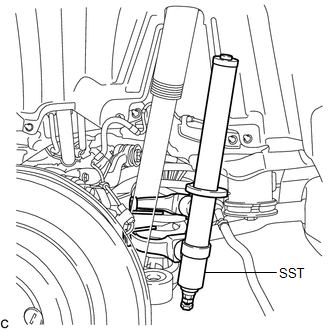

4. Attach the hooks of each SST arm across the diameter of the rear coil spring.
   • SST: 09727-30022
     1. 09727-00010
     2. 09727-00031
   • SST: 09727-00120

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   WARNING:

   • Make sure that the hooks of the upper and lower arms are attached to the coil spring so that the distance between the hooks is as large as possible.
   • Check that the claws of the hooks are securely attached to the coil spring.
5. Install the stopper plates to the hooks of SST.
   WARNING:

   Make sure that the stopper plates are installed securely.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Correct
   *b	Incorrect
   *c	Stopper plate

6. Using SST, compress the rear coil spring.
   WARNING:

   • If the coil spring bends while using SST, stop immediately and reattach SST correctly.
   • Do not compress the coil spring to the point where the coils touch each other.
   • Do not use an impact wrench.
   • Compress the rear coil spring until there is no tension between the vehicle body and rear coil spring.
7. Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly from the rear axle assembly.
   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

8. Slowly lower the rear No. 2 suspension arm assembly, and remove the rear coil spring with SST and rear upper coil spring insulator.
9. Remove SST from the rear coil spring.
   NOTE:

   Do not use an impact wrench. It will damage SST.

1. Remove the rear upper coil spring insulator from the rear coil spring.

1. Remove the rear lower coil spring insulator from the rear No. 2 suspension arm assembly.
