Removal [11/2017 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    for 2GR-FKS: Refer to PROCEDURE - Step 11

    for 8AR-FTS: Refer to PROCEDURE - Step 12

  2. REMOVE SUSPENSION TOWER DAMPER

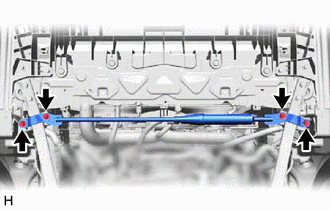

    1. Remove the 4 bolts and suspension tower damper from the front upper No. 2 suspension member.
      GTY636079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not extend or compress the damper.
