Removal [10/2015 - 11/2017]: Procedure

  1. DRAIN COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 1

  2. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  3. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [09/2014 - 11/2017]

  4. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to REMOVAL [09/2014 - 11/2017]

  5. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 5

  6. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 7

  7. DISCONNECT HOOD LOCK CONTROL CABLE ASSEMBLY

    Refer to PROCEDURE - Step 9

  8. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 8

  9. DISCONNECT ENGINE ROOM MAIN WIRE

    Refer to PROCEDURE - Step 11

  10. REMOVE UPPER RADIATOR SUPPORT

    Refer to PROCEDURE - Step 15

  11. DISCONNECT LIQUID TUBE SUB-ASSEMBLY A

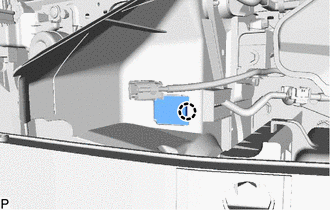

    1. Disengage the claw to open the service hole cover.
      GTY461564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

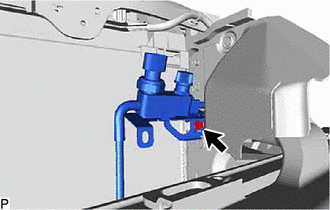

    2. Remove the bolt.
      GTY642174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

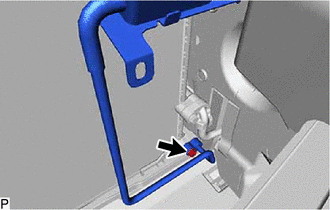

    3. Remove the bolt and disconnect the liquid tube sub-assembly A from the cooler condenser assembly.
      GTY679038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the O-ring from the liquid tube sub-assembly A.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  12. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE

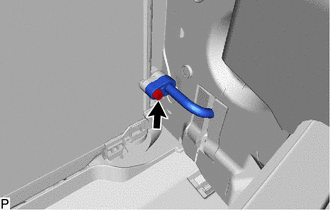

    1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the cooler condenser assembly.
      GTY461601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  13. DISCONNECT NO. 1 INTERCOOLER COOLING WATER HOSE

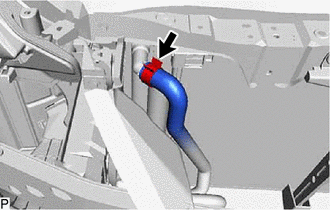

    1. Using pliers, grip the claws of the clip and slide the clip to disconnect the No. 1 intercooler cooling water hose.
      GTY667311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not apply excessive force to the No. 1 intercooler cooling water hose.
      • Prepare a drain pan or cloth in case the coolant leaks.
  14. DISCONNECT NO. 7 INTERCOOLER COOLING WATER HOSE

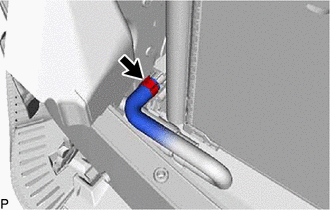

    1. Using pliers, grip the claws of the clip and slide the clip to disconnect the No. 7 intercooler cooling water hose.
      GTY667310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not apply excessive force to the No. 7 intercooler cooling water hose.
      • Prepare a drain pan or cloth in case the coolant leaks.
  15. REMOVE COOLER CONDENSER ASSEMBLY WITH INTERCOOLER COOLING RADIATOR ASSEMBLY

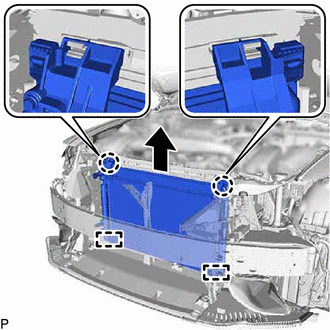

    1. Disengage the 2 claws.
      GTY667321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides and remove the cooler condenser assembly with intercooler cooling radiator assembly as shown in the illustration.
      NOTE:

      Do not damage the cooler condenser assembly with intercooler cooling radiator assembly or radiator assembly when removing the cooler condenser assembly with intercooler cooling radiator assembly.

  16. REMOVE COOLER CONDENSER ASSEMBLY

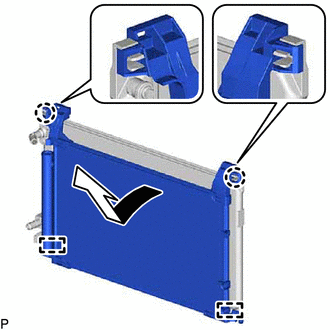

    1. Disengage the 2 claws.
      GTY667319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to remove the cooler condenser assembly from the intercooler cooling radiator assembly as shown in the illustration.
      NOTE:

      Do not damage the cooler condenser assembly or intercooler cooling radiator assembly when removing the cooler condenser assembly.
