Reassembly [09/2014 - ]: Procedure

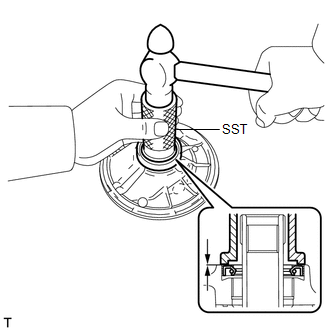

1. Using SST and a hammer, install a new front oil pump oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09350-30020
     1. 09351-32140

   Standard Depth

   -0.2 to 0.2 mm (-0.00787 to 0.00787 in.)

   HINT:

   The front oil pump oil seal should be flush with the outer edge of the front oil pump body sub-assembly.

2. Coat the lip of the front oil pump oil seal with MP grease.

1. Install the front oil pump body sub-assembly to the torque converter assembly.

1. Coat the front oil pump driven gear with ATF.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the front oil pump driven gear to the front oil pump body sub-assembly.

1. Coat the front oil pump drive gear with ATF.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the front oil pump drive gear to the front oil pump body sub-assembly.

1. Install a new front oil pump body O-ring to the front oil pump body sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Align the bolt holes of the stator shaft assembly with the bolt holes of the front oil pump body sub-assembly and install the stator shaft assembly to the front oil pump body sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

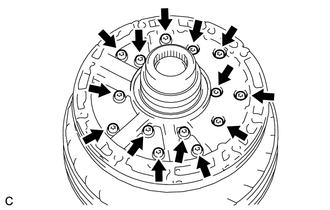

2. Using a T30 "TORX" socket wrench, install the 14 bolts.

   Torque: 10.8 N.m (110 kgf/cm, 8 ft.lbf)

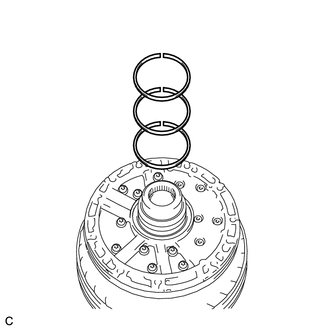

1. Coat 3 new clutch drum oil seal rings with ATF and install them to the stator shaft assembly.
   NOTE:

   Do not expand the gap of the clutch drum oil seal rings excessively.

2. Install the 3 clutch drum oil seal rings to the oil pump assembly.

   HINT:

   After installing the clutch drum oil seal rings, check that they rotate smoothly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  4

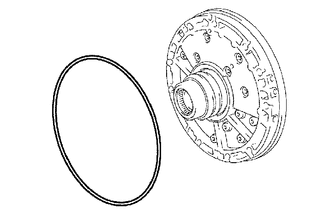

1. Install a new stator shaft O-ring to the oil pump assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
