Components [09/2014 - ]

WARNING: This page is about a different variant/trim than selected.

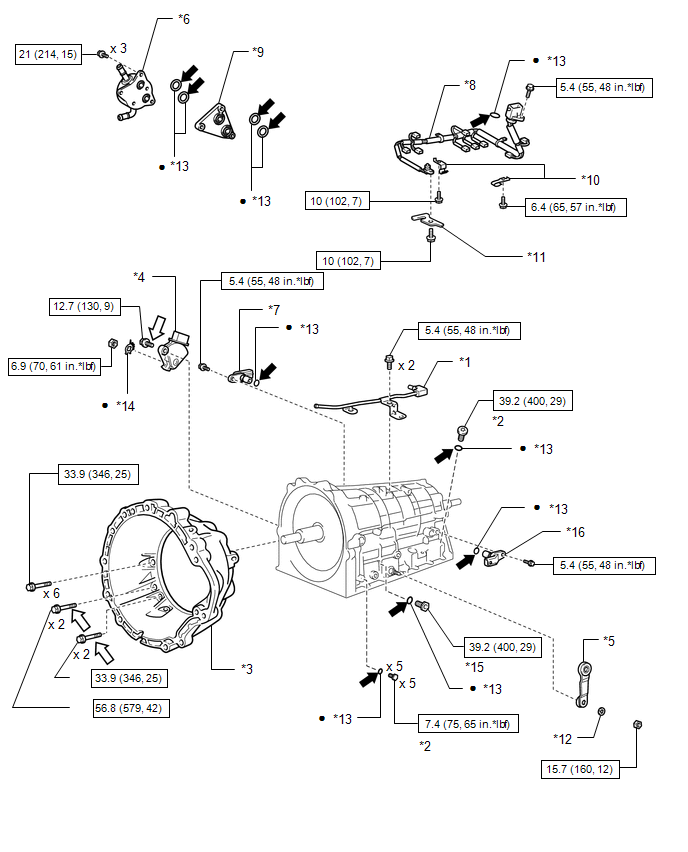

Fig 1: Automatic Transmission Unit Replacement Components With Torque Specifications (1 Of 10)
GTY515040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AUTOMATIC TRANSMISSION BREATHER TUBE *2 AUTOMATIC TRANSMISSION CASE PLUG
*3 AUTOMATIC TRANSMISSION HOUSING *4 PARK/NEUTRAL POSITION SWITCH ASSEMBLY
*5 TRANSMISSION CONTROL SHAFT LEVER LH *6 TRANSMISSION OIL COOLER
*7 TRANSMISSION REVOLUTION SENSOR (NT) *8 TRANSMISSION WIRE
*9 SPACER *10 VALVE BODY WIRE HARNESS CLAMP
*11 TEMPERATURE SENSOR CLAMP *12 SPRING WASHER
*13 O-RING *14 LOCK WASHER
*15 REFILL PLUG *16 TRANSMISSION REVOLUTION SENSOR (SP2)
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
ATF WS Adhesive 1344
* Precoated part - -

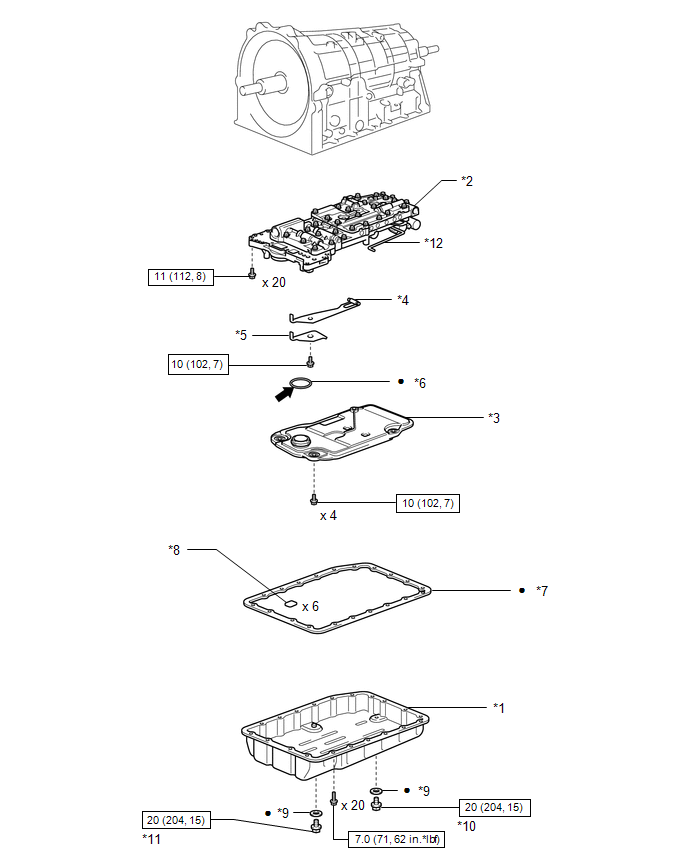

Fig 2: Automatic Transmission Unit Replacement Components With Torque Specifications (2 Of 10)
GTY495420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY *2 TRANSMISSION VALVE BODY ASSEMBLY
*3 VALVE BODY OIL STRAINER ASSEMBLY *4 DETENT SPRING
*5 DETENT SPRING COVER *6 O-RING
*7 AUTOMATIC TRANSMISSION OIL PAN GASKET *8 TRANSMISSION OIL CLEANER MAGNET
*9 GASKET *10 DRAIN PLUG
*11 OVERFLOW PLUG *12 MANUAL VALVE CONNECTING ROD
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
ATF WS - -

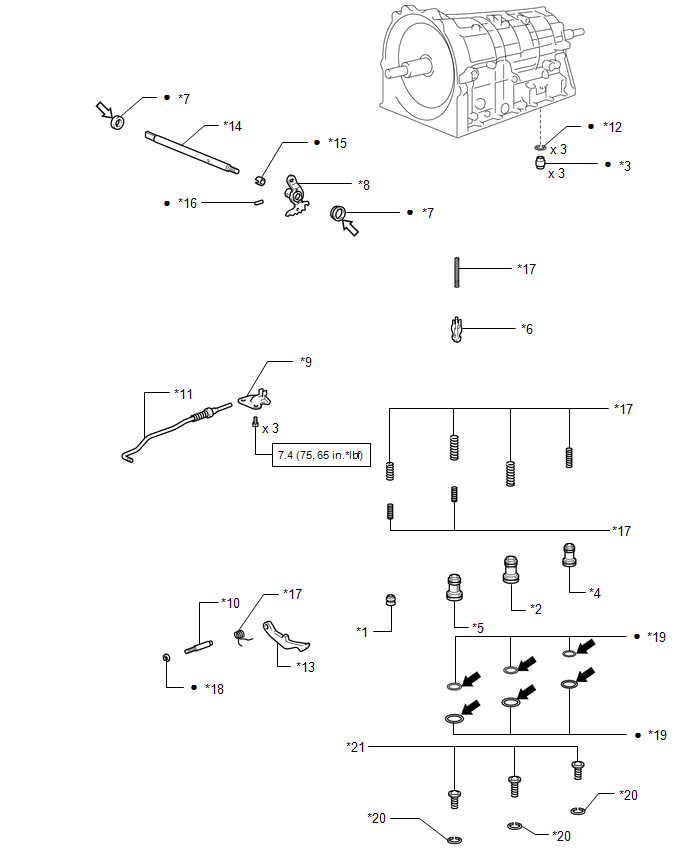

Fig 3: Automatic Transmission Unit Replacement Components With Torque Specifications (3 Of 10)
GTY511917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 B-1 ACCUMULATOR VALVE *2 B-3 ACCUMULATOR PISTON
*3 BRAKE DRUM GASKET *4 C-2 ACCUMULATOR PISTON
*5 C-3 ACCUMULATOR PISTON *6 CHECK BALL BODY
*7 MANUAL VALVE LEVER SHAFT OIL SEAL *8 MANUAL VALVE LEVER SUB-ASSEMBLY
*9 PARKING LOCK PAWL BRACKET *10 PARKING LOCK PAWL SHAFT
*11 PARKING LOCK ROD SUB-ASSEMBLY *12 TRANSAXLE CASE GASKET
*13 PARKING LOCK PAWL *14 MANUAL VALVE LEVER SHAFT
*15 SPACER *16 SPRING PIN
*17 SPRING *18 E-RING
*19 O-RING *20 SNAP RING
*21 SPRING SUB-ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
ATF WS MP grease

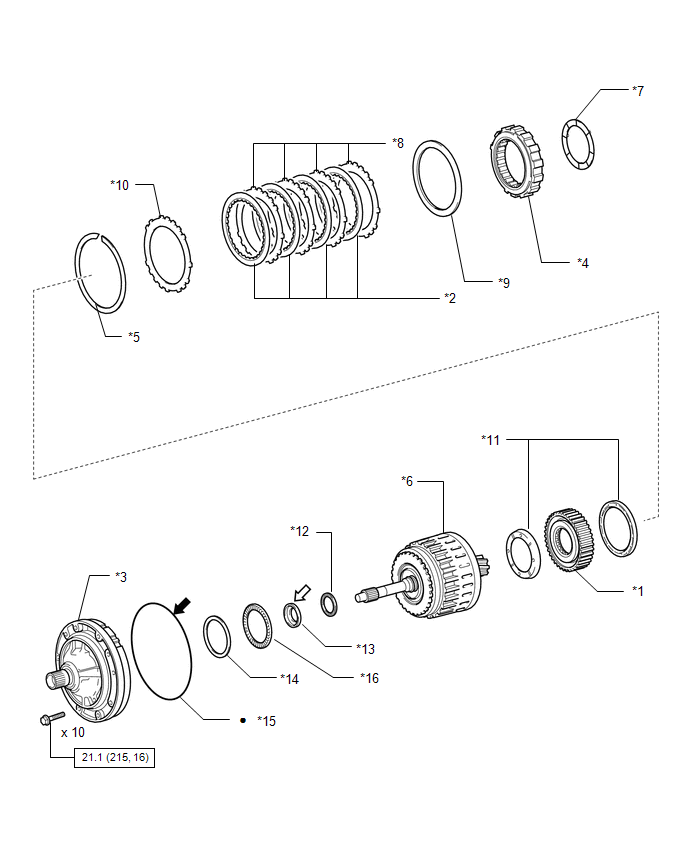

Fig 4: Automatic Transmission Unit Replacement Components With Torque Specifications (4 Of 10)
GTY505881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 2 ONE-WAY CLUTCH ASSEMBLY *2 NO. 3 BRAKE DISC
*3 OIL PUMP ASSEMBLY *4 ONE-WAY CLUTCH ASSEMBLY
*5 NO. 3 BRAKE SNAP RING *6 CLUTCH DRUM AND INPUT SHAFT ASSEMBLY
*7 NO. 1 PLANETARY CARRIER THRUST WASHER *8 NO. 3 BRAKE PLATE
*9 CUSHION PLATE *10 NO. 3 BRAKE FLANGE
*11 NO. 2 CLUTCH DRUM THRUST WASHER *12 THRUST NEEDLE ROLLER BEARING
*13 THRUST BEARING RACE *14 NO. 1 THRUST BEARING RACE
*15 O-RING *16 INPUT SHAFT FRONT THRUST NEEDLE ROLLER BEARING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
ATF WS MP grease

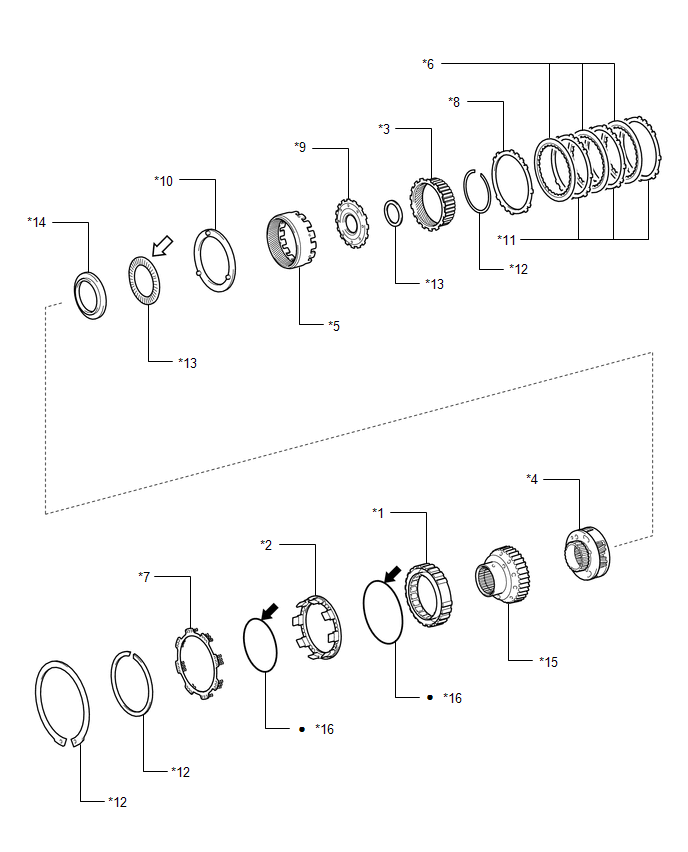

Fig 5: Automatic Transmission Unit Replacement Components (5 Of 10)
GTY503019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 2ND BRAKE CYLINDER *2 2ND BRAKE PISTON
*3 CENTER PLANETARY RING GEAR *4 FRONT PLANETARY GEAR ASSEMBLY
*5 FRONT PLANETARY RING GEAR *6 NO. 1 BRAKE DISC
*7 NO. 3 BRAKE PISTON RETURN SPRING SUB-ASSEMBLY *8 NO. 1 BRAKE FLANGE
*9 FRONT PLANETARY RING THRUST FLANGE *10 NO. 2 PLANETARY CARRIER THRUST WASHER
*11 NO. 1 BRAKE PLATE *12 SNAP RING
*13 THRUST NEEDLE ROLLER BEARING *14 NO. 3 THRUST BEARING RACE
*15 ONE-WAY CLUTCH INNER RACE SUB-ASSEMBLY *16 O-RING
• Non-reusable part ATF WS
MP grease - -

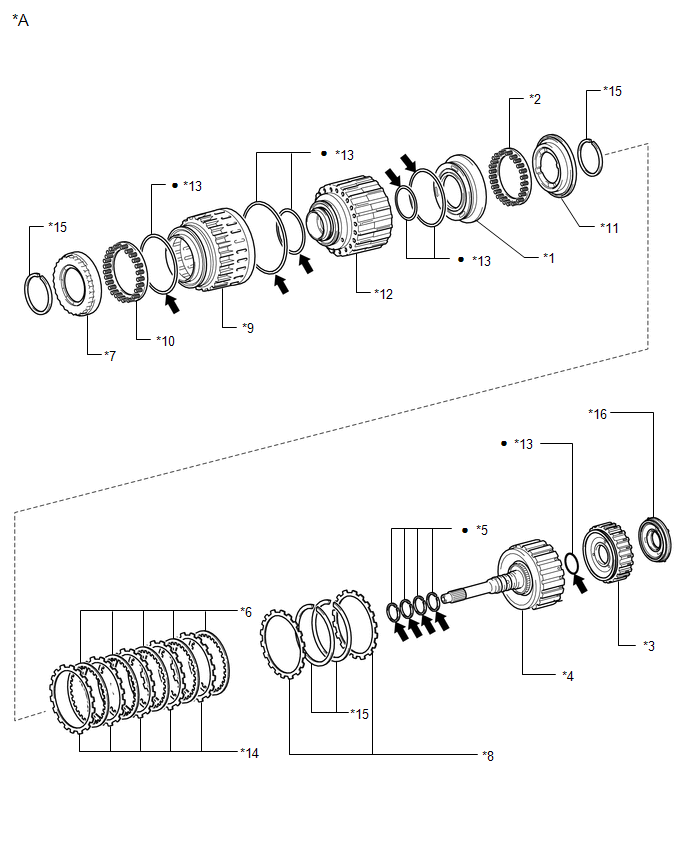

Fig 6: Automatic Transmission Unit Replacement Components (6 Of 10)
GTY495308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A CLUTCH DRUM AND INPUT SHAFT ASSEMBLY - -
*1 DIRECT CLUTCH PISTON SUB-ASSEMBLY *2 DIRECT CLUTCH RETURN SPRING SUB-ASSEMBLY
*3 FORWARD CLUTCH PISTON SUB-ASSEMBLY *4 INPUT SHAFT SUB-ASSEMBLY
*5 INPUT SHAFT OIL SEAL RING *6 NO. 2 DIRECT CLUTCH DISC
*7 NO. 3 CLUTCH BALANCER *8 REVERSE CLUTCH FLANGE
*9 REVERSE CLUTCH PISTON SUB-ASSEMBLY *10 REVERSE CLUTCH RETURN SPRING SUB-ASSEMBLY
*11 NO. 2 CLUTCH BALANCER *12 REVERSE CLUTCH DRUM SUB-ASSEMBLY
*13 O-RING *14 NO. 2 CLUTCH PLATE
*15 SNAP RING *16 COAST CLUTCH PISTON
• Non-reusable part ATF WS

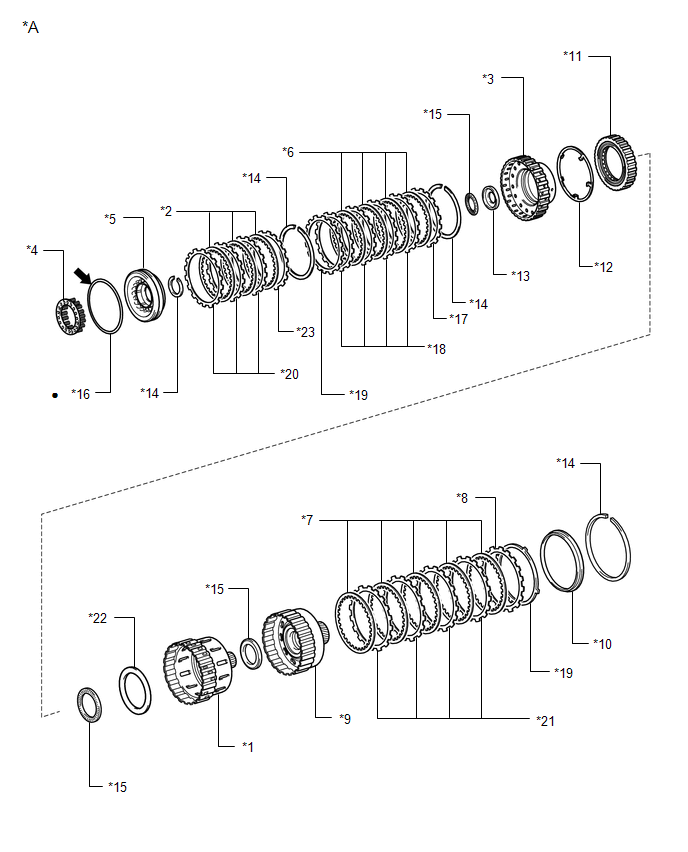

Fig 7: Automatic Transmission Unit Replacement Components (7 Of 10)
GTY517380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A CLUTCH DRUM AND INPUT SHAFT ASSEMBLY - -
*1 FORWARD CLUTCH HUB SUB-ASSEMBLY *2 COAST CLUTCH DISC
*3 COAST CLUTCH HUB SUB-ASSEMBLY *4 FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY
*5 NO. 1 CLUTCH BALANCER *6 NO. 1 CLUTCH DISC
*7 NO. 3 CLUTCH DISC *8 REVERSE CLUTCH FLANGE
*9 REVERSE CLUTCH HUB SUB-ASSEMBLY *10 REVERSE CLUTCH REACTION SLEEVE
*11 UNDERDRIVE ONE-WAY CLUTCH ASSEMBLY *12 CLUTCH HUB THRUST WASHER
*13 THRUST BEARING RACE *14 SNAP RING
*15 THRUST NEEDLE ROLLER BEARING *16 D-RING
*17 FORWARD CLUTCH FLANGE *18 NO. 1 CLUTCH PLATE
*19 CLUTCH CUSHION PLATE *20 COAST CLUTCH PLATE
*21 NO. 3 CLUTCH PLATE *22 NO. 3 CLUTCH HUB THRUST WASHER
*23 COAST CLUTCH FLANGE - -
• Non-reusable part ATF WS

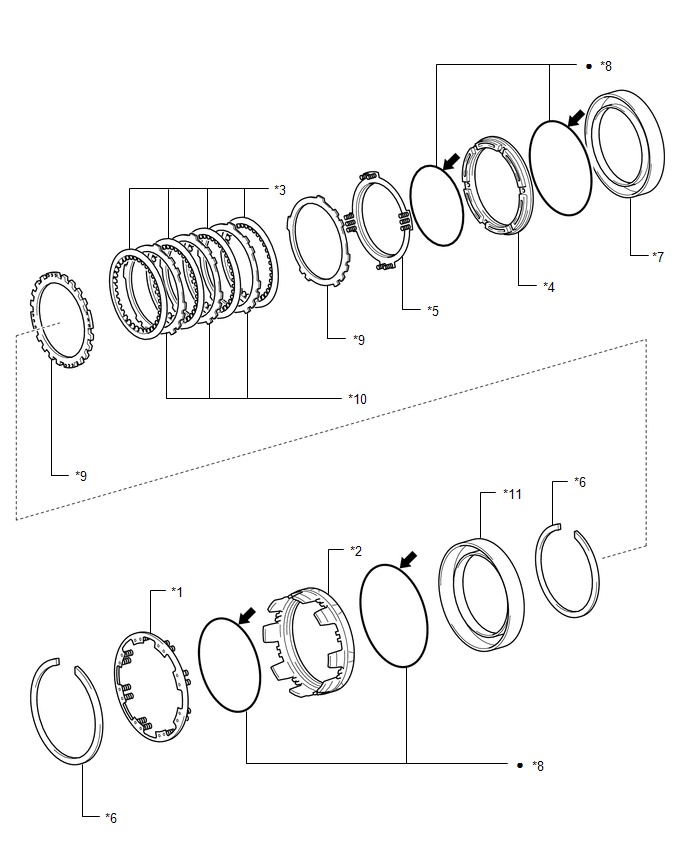

Fig 8: Automatic Transmission Unit Replacement Components (8 Of 10)
GTY512574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE PISTON RETURN SPRING SUB-ASSEMBLY *2 NO. 1 BRAKE PISTON
*3 NO. 2 BRAKE DISC *4 NO. 2 BRAKE PISTON
*5 NO. 2 BRAKE PISTON RETURN SPRING SUB-ASSEMBLY *6 NO. 2 BRAKE SNAP RING
*7 NO. 2 BRAKE CYLINDER *8 O-RING
*9 NO. 2 BRAKE FLANGE *10 NO. 2 BRAKE PLATE
*11 NO. 1 BRAKE CYLINDER - -
• Non-reusable part ATF WS

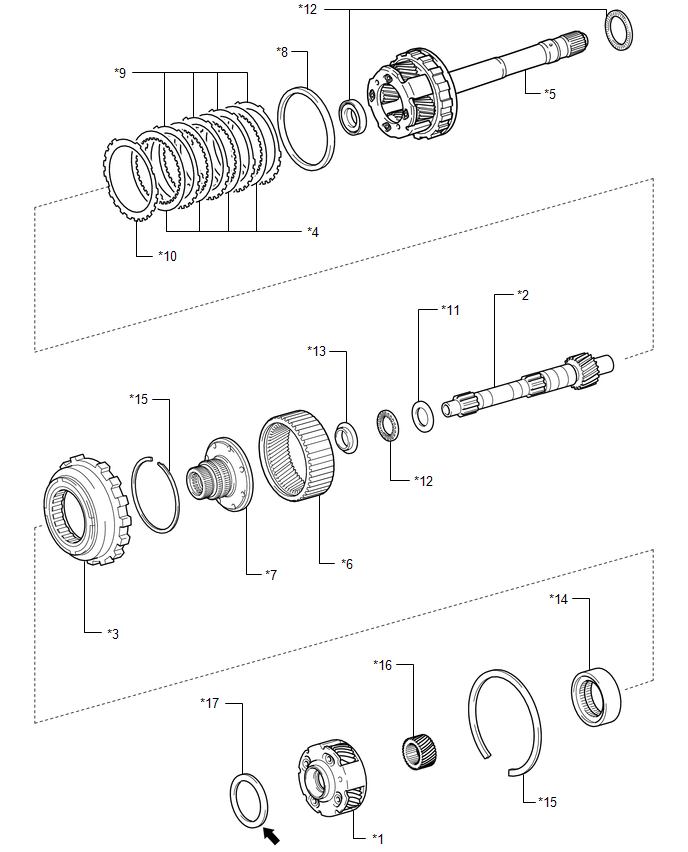

Fig 9: Automatic Transmission Unit Replacement Components (9 Of 10)
GTY520261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CENTER PLANETARY GEAR ASSEMBLY *2 INTERMEDIATE SHAFT
*3 NO. 3 ONE-WAY CLUTCH ASSEMBLY *4 NO. 4 BRAKE DISC
*5 REAR PLANETARY GEAR ASSEMBLY *6 REAR PLANETARY RING GEAR
*7 REAR PLANETARY RING GEAR FLANGE SUB-ASSEMBLY *8 REAR COVER SLEEVE
*9 NO. 4 BRAKE PLATE *10 NO. 4 BRAKE FLANGE
*11 NO. 8 THRUST BEARING RACE *12 THRUST NEEDLE ROLLER BEARING
*13 NO. 7 THRUST BEARING RACE *14 ONE-WAY CLUTCH INNER RACE
*15 SNAP RING *16 PLANETARY SUN GEAR
*17 NO. 4 THRUST BEARING RACE - -
MP grease - -

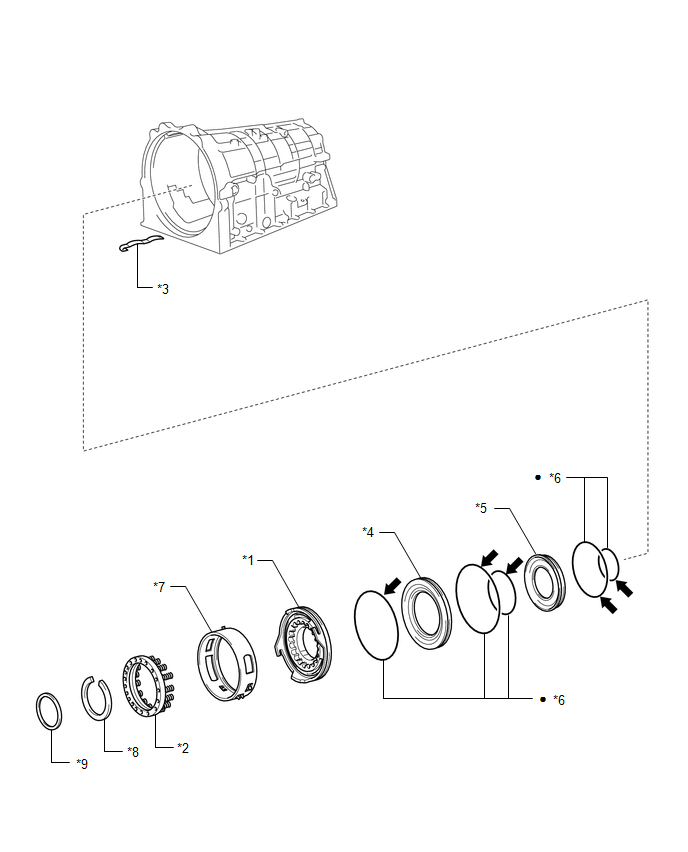

Fig 10: Automatic Transmission Unit Replacement Components (10 Of 10)
GTY517337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 1ST AND REVERSE BRAKE PISTON *2 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
*3 BRAKE PLATE STOPPER SPRING *4 BRAKE REACTION SLEEVE
*5 NO. 4 BRAKE PISTON *6 O-RING
*7 BRAKE APPLY TUBE *8 SNAP RING
*9 NO. 9 THRUST BEARING RACE - -
• Non-reusable part ATF WS
