Removal [09/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSFER CONTROL VALVE BODY ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  2. REMOVE TRANSFER TRANSMISSION WIRE
    1. Disconnect the transfer control solenoid assembly connector.

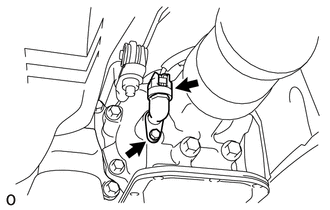

      GTY467370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and transfer transmission wire from the transfer case sub-assembly.
