Removal [09/2014 - ]: Procedure

Refer to REMOVAL [09/2014 - ]

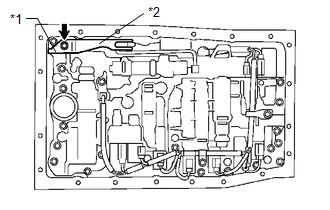

1. Remove the bolt, detent spring cover and detent spring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Detent Spring Cover
   *2	Detent Spring

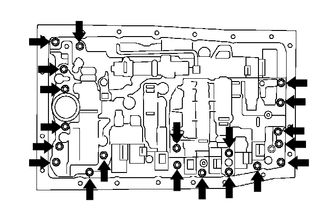

2. Remove the 20 bolts and transmission valve body assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

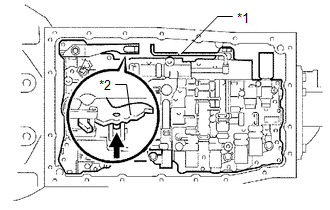

3. Disconnect the manual valve connecting rod from the manual valve lever sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Manual Valve Connecting Rod
   *2	Manual Valve Lever Sub-assembly

4. Remove the check ball body and spring.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Check Ball Body
   *2	Spring

   NOTE:

   Do not drop the check ball body or spring.
