Installation [09/2014 - ]: Procedure

1. Install the check ball body and spring.
   NOTE:

   Do not drop the check ball body or spring.

2. Check that the accumulator pistons, check ball body and spring are installed correctly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

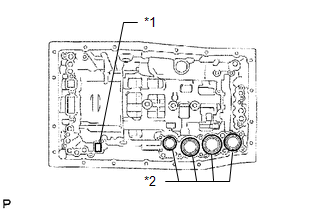

   *1	Check Ball Body and Spring
   *2	Accumulator Piston

3. Connect the manual valve connecting rod to the manual valve lever sub-assembly.

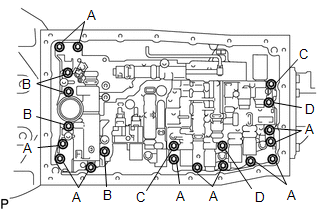

4. Install the transmission valve body assembly with the 20 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 11 N.m (112 kgf/cm, 8 ft.lbf)

   BOLT LENGTH



   Bolt	Bolt length
   (A)	25 mm (0.984 in.)
   (B)	36 mm (1.42 in.)
   (C)	45 mm (1.77 in.)
   (D)	50 mm (1.97 in.)

5. Install the detent spring and detent spring cover with the bolt.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Refer to INSTALLATION [09/2014 - ]

Refer to ADJUSTMENT [09/2014 - 11/2017] , or refer to ADJUSTMENT [11/2017 - 09/2020] , or refer to ADJUSTMENT [09/2020 - ]

Refer to INITIALIZATION [09/2014 - 11/2017] , or refer to INITIALIZATION [11/2017 - ]
