Disassembly [09/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT SOLENOID VALVE (SL2)
    1. Remove the bolt, 2 straight pins and lock plate.
      GTY458262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift solenoid valve (SL2).
  2. REMOVE LOCK UP CONTROL SOLENOID ASSEMBLY
    1. Remove the lock up control solenoid assembly.
      GTY458261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

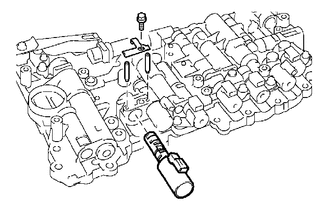

  3. REMOVE LINE PRESSURE CONTROL SOLENOID ASSEMBLY
    1. Remove the bolt, 2 straight pins and lock plate.
      GTY458202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the line pressure control solenoid assembly.

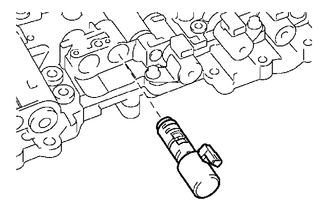

  4. REMOVE SHIFT SOLENOID VALVE (SL1)
    1. Remove the shift solenoid valve (SL1).
      GTY458203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

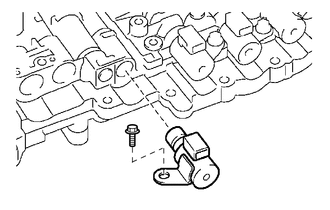

  5. REMOVE SHIFT SOLENOID VALVE (SR)
    1. Remove the bolt and shift solenoid valve (SR).
      GTY457908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

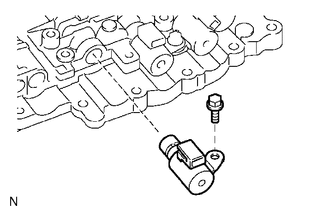

  6. REMOVE SHIFT SOLENOID VALVE (S1)
    1. Remove the bolt and shift solenoid valve (S1).
      GTY459935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

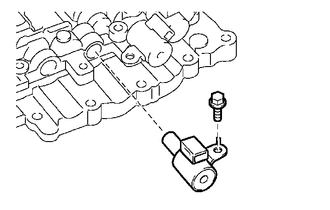

  7. REMOVE SHIFT SOLENOID VALVE (S4)
    1. Remove the bolt and shift solenoid valve (S4).
      GTY468981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

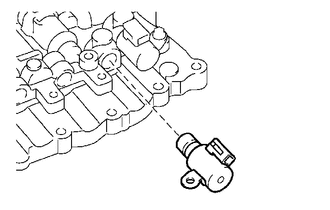

  8. REMOVE SHIFT SOLENOID VALVE (S2)
    1. Remove the shift solenoid valve (S2).
      GTY458264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SHIFT SOLENOID VALVE (S3)
    1. Remove the bolt and shift solenoid valve (S3).
      GTY458260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
