Removal [09/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)
    1. Disconnect the transmission revolution sensor (NT) connector.

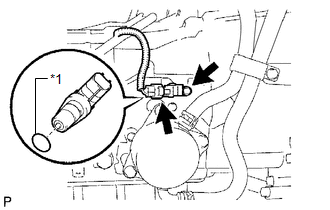

      GTY500949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
    2. Remove the bolt and transmission revolution sensor (NT).
    3. Remove the O-ring from the transmission revolution sensor (NT).
  2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)
    1. Disconnect the transmission revolution sensor (SP2) connector.

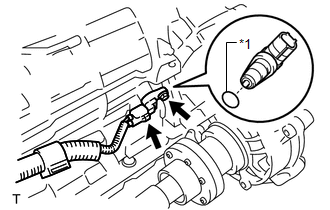

      GTY498018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
    2. Remove the bolt and transmission revolution sensor (SP2).
    3. Remove the O-ring from the transmission revolution sensor (SP2).
