Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

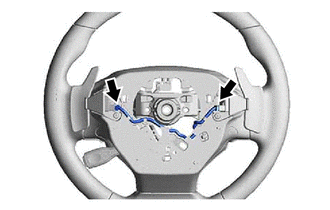

Disengage the No. 1 switch wire connector clamp from the steering wheel assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

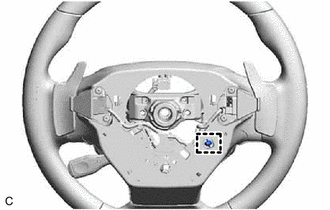

Disconnect the No. 1 switch wire connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

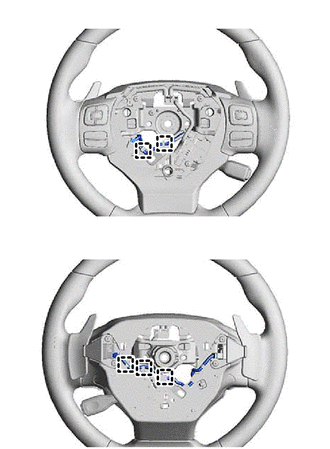

Disconnect the 2 shift paddle switch (transmission shift switch assembly) connectors.

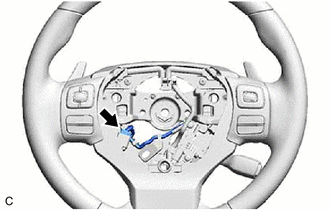

Disengage the 5 guides to remove the No. 1 switch wire from the steering wheel assembly.

Remove the 4 screws and 2 shift paddle switches (transmission shift switch assemblies) from the steering wheel assembly.
