Components [11/2017 - ]
WARNING: This page is about a different variant/trim than selected.

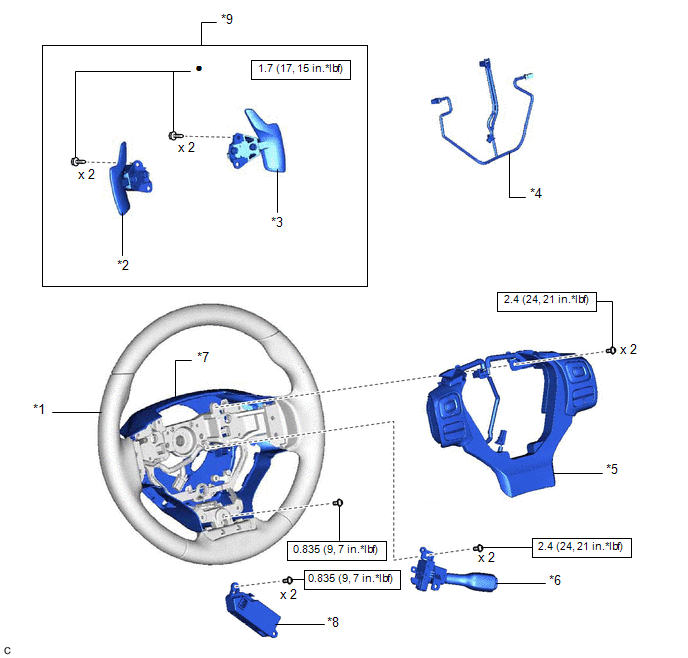

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | STEERING WHEEL ASSEMBLY | *2 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) LH |
| *3 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) RH | *4 | NO. 1 SWITCH WIRE |
| *5 | STEERING PAD SWITCH ASSEMBLY | *6 | CRUISE CONTROL MAIN SWITCH |
| *7 | LOWER STEERING WHEEL BOSS COVER | *8 | STEERING VIBRATION AND HEATER ECU |
| *9 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| * | Precoated part | - | - |
