Installation [09/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. Temporarily install the transmission floor shift assembly to the vehicle body with the 4 bolts.
      NOTE:

      Do not pinch the wire harness.

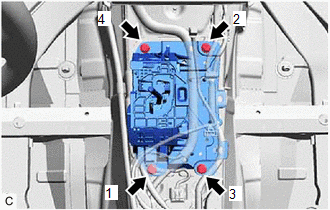

      Fig 1: Transmission Floor Shift Assembly Bolts Tightening Sequence
      GTY497863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fully tighten the 4 bolts in the order shown in the illustration to install the transmission floor shift assembly.

      Torque: 8.3 N.m (85 kgf/cm, 73 in.lbf)

    3. Connect the transmission control switch connector.
      NOTE:

      Be sure to securely connect the transmission control switch connector.

    4. Engage the 4 clamps to connect the wire harness to the transmission floor shift assembly.
    5. Connect the shift lock control ECU connector.
      NOTE:

      Be sure to securely connect the shift lock control ECU connector.

  2. INSTALL NO. 1 CONSOLE BOX DUCT
    1. Install the No. 1 console box duct with the 2 clips.
    2. Engage the clamp to connect the wire harness to the No. 1 console box duct.
  3. INSTALL CONSOLE BOX ASSEMBLY

    Refer to INSTALLATION [09/2014 - 10/2018] , or refer to INSTALLATION [10/2018 - ]

  4. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Turn the transmission control shaft lever LH clockwise until it stops, then turn it counterclockwise 2 notches.
      GTY464819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Control Shaft Lever LH
      *a P
      *b R
      *c N
    2. Move the shift lever to N.
    3. Temporarily install the nut to the lever of the transmission floor shift assembly.

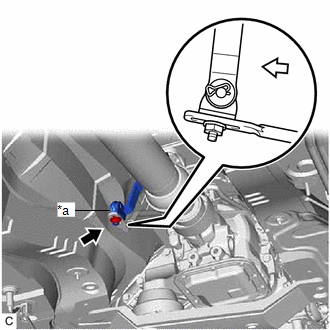

      GTY508351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lever
      Rear of the vehicle
    4. Tighten the nut while lightly pushing the lever of the transmission floor shift assembly toward the rear of the vehicle.

      Torque: 12.8 N.m (131 kgf/cm, 9 ft.lbf)

      NOTE:

      Do not push the lever of the transmission floor shift assembly too hard.

  5. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 4

  6. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

    Refer to INSTALLATION [09/2014 - 11/2017] , or refer to INSTALLATION [11/2017 - ]

  7. INSTALL SHIFT LEVER CAP
    1. Engage the 2 claws to install the shift lever cap to the shift position indicator.

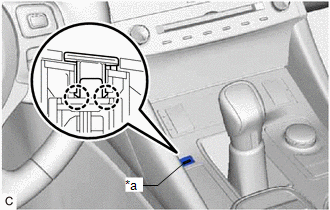

      GTY505500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Groove
      NOTE:

      Install the shift lock release button cover with its groove facing the rear of the vehicle.

  8. INSPECT SHIFT LEVER POSITION

    See step  1

  9. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 9 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 9 [11/2017 - ]
