Disassembly [09/2014 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE REMOTE OPERATION CONTROLLER ASSEMBLY

    Refer to PROCEDURE - Step 7

  2. REMOVE SHIFT POSITION INDICATOR
    1. Disengage the clamp and 2 guides.

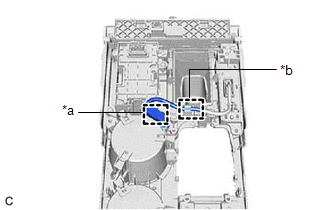

      GTY500188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
      *b Guide
    2. Remove the screw and shift position indicator from the console panel sub-assembly.

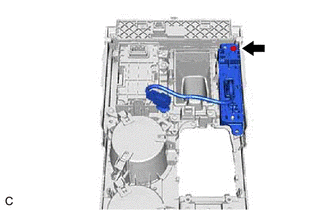

      GTY499667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
