Components [09/2014 - ]
WARNING: This page is about a different variant/trim than selected.

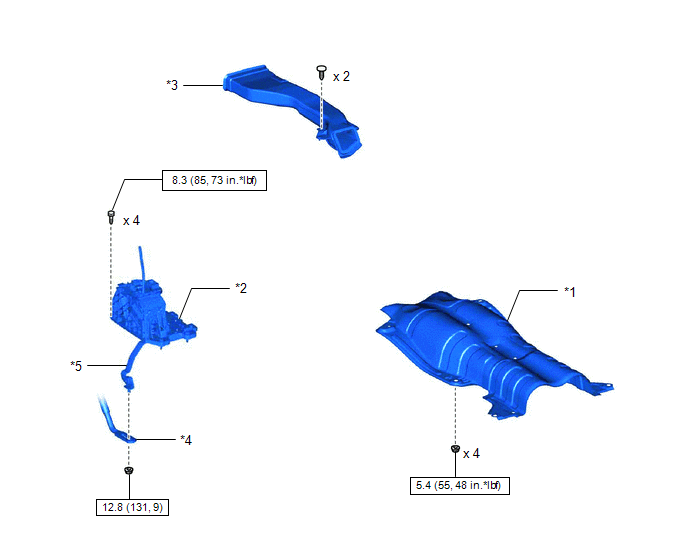

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT NO. 1 FLOOR HEAT INSULATOR | *2 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| *3 | NO. 1 CONSOLE BOX DUCT | *4 | FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY |
| *5 | LEVER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

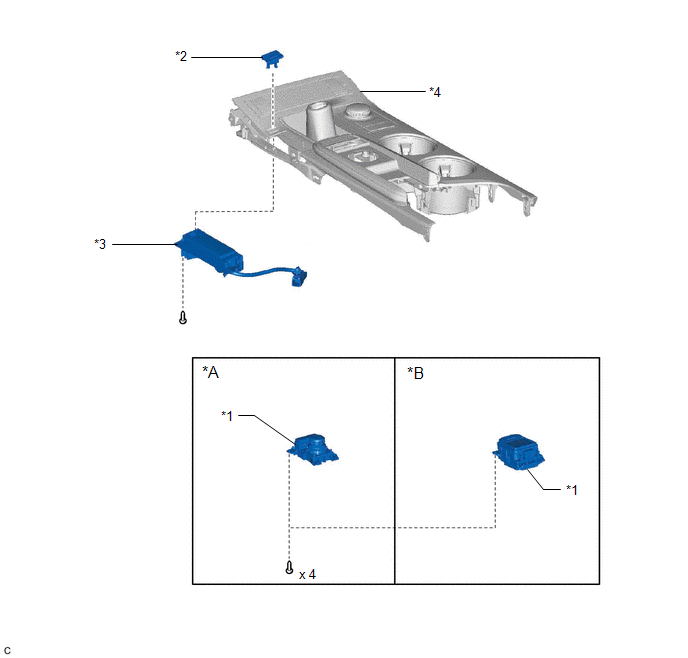

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Radio and Display Type | *B | for Multi-Media Module Receiver Type |
| *1 | REMOTE OPERATION CONTROLLER ASSEMBLY | *2 | SHIFT LEVER CAP |
| *3 | SHIFT POSITION INDICATOR | *4 | CONSOLE PANEL SUB-ASSEMBLY |
