Components [09/2014 - ]

WARNING: This page is about a different variant/trim than selected.

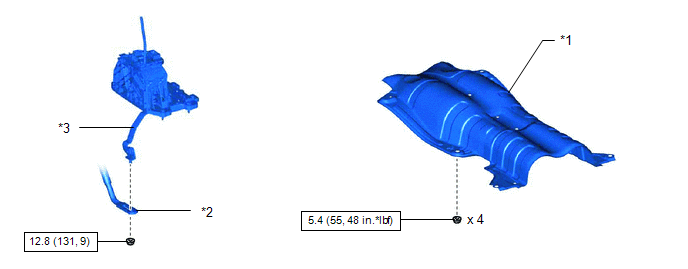

Fig 1: Park / Neutral Position Switch Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT NO. 1 FLOOR HEAT INSULATOR	*2	FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
*3	LEVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

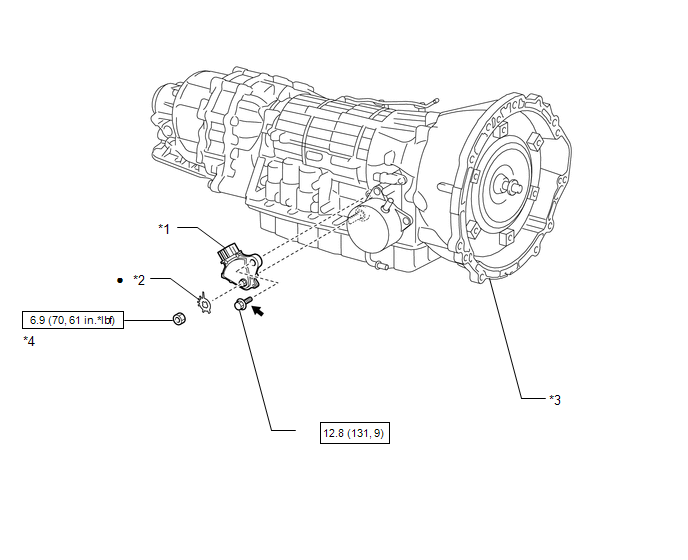

Fig 2: Park / Neutral Position Switch Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	PARK/NEUTRAL POSITION SWITCH ASSEMBLY	*2	LOCK WASHER
*3	AUTOMATIC TRANSMISSION WITH TRANSFER ASSEMBLY	*4	LOCK NUT
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Adhesive 1344	*	Precoated part
