Components [09/2014 - ]

WARNING: This page is about a different variant/trim than selected.

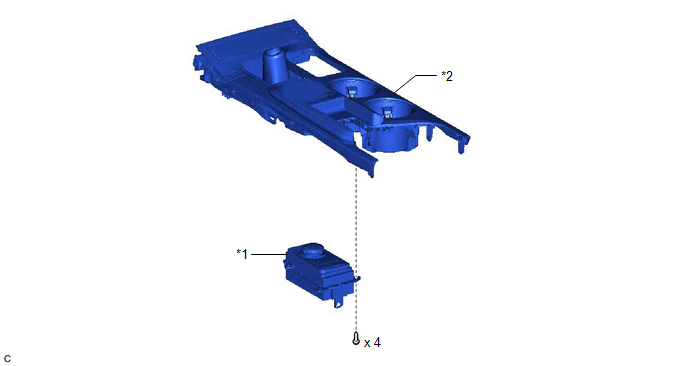

Fig 1: Combination Switch Replacement Components
GTY515110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 COMBINATION SWITCH ASSEMBLY *2 CONSOLE PANEL SUB-ASSEMBLY
