Parts Location [10/2015 - 11/2017]: Illustration
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

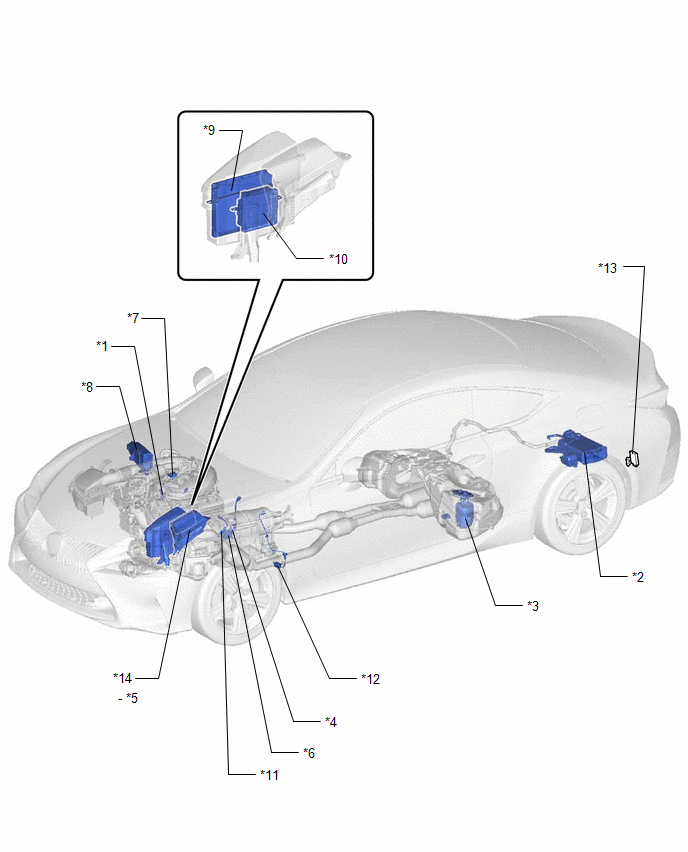

 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
AIR FUEL RATIO SENSOR (Bank 1 Sensor 1) |
*2 |
CANISTER |
| *3 |
FUEL PUMP (for Low Pressure Side) |
*4 |
HEATED OXYGEN SENSOR (Bank 1 Sensor 2) |
| *5 |
SEMICONDUCTOR PWR INTEGRATION ECU |
*6 |
PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *7 |
PURGE VSV |
*8 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *9 |
ECM |
*10 |
TCM (for 2WD Models) |
| *11 |
AIR FUEL RATIO SENSOR (Bank 2 Sensor 1) |
*12 |
HEATED OXYGEN SENSOR (Bank 2 Sensor 2) |
| *13 |
FUEL PUMP CONTROL ECU ASSEMBLY |
*14 |
NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Camshaft of Bank 1) |
*2 |
CRANKSHAFT POSITION SENSOR |
| *3 |
FUEL INJECTOR ASSEMBLY (for Direct Injection) |
*4 |
FUEL PRESSURE SENSOR |
| *5 |
MASS AIR FLOW METER SUB-ASSEMBLY |
*6 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
| *7 |
FUEL INJECTOR ASSEMBLY (for Port Injection) |
*8 |
INJECTOR DRIVER (EDU) |
| *9 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Camshaft of Bank 2) |
*10 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Camshaft of Bank 1) |
| *11 |
CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Camshaft of Bank 2) |
*12 |
FUEL RELIEF VALVE ASSEMBLY |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
ENGINE COOLANT TEMPERATURE SENSOR |
*2 |
FUEL PUMP (for High Pressure Side) |
| *3 |
KNOCK CONTROL SENSOR (for Bank 1) |
*4 |
KNOCK CONTROL SENSOR (for Bank 2) |
| *5 |
IGNITION COIL ASSEMBLY |
*6 |
VVT SENSOR (for Intake Camshaft of Bank 1) |
| *7 |
VVT SENSOR (for Exhaust Camshaft of Bank 1) |
*8 |
VVT SENSOR (for Intake Camshaft of Bank 2) |
| *9 |
VVT SENSOR (for Exhaust Camshaft of Bank 2) |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
ACCELERATOR PEDAL SENSOR ASSEMBLY |
*2 |
STOP LIGHT SWITCH ASSEMBLY |
| *3 |
DLC3 |
*4 |
COMBINATION METER ASSEMBLY |
