On-Vehicle Inspection [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT INTAKE SYSTEM

HINT:

Perform Inspection After Repair after repairing any leaks in the intake system.

Refer to INITIALIZATION [10/2015 - 10/2018] , or refer to INITIALIZATION [10/2018 - 11/2019] , or refer to INITIALIZATION [11/2019 - ]

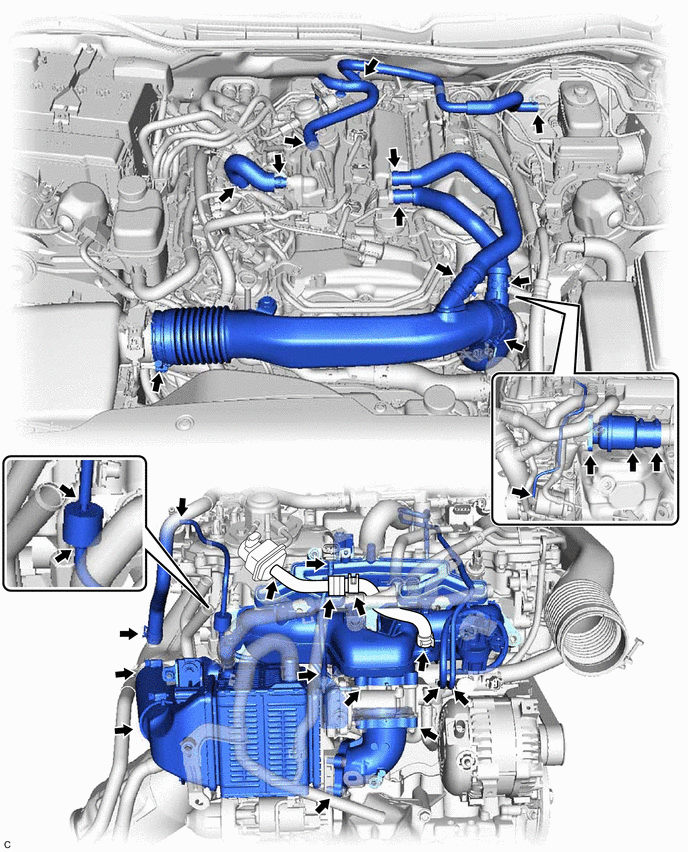

Check that there are no vacuum leaks at the points shown in the illustration.

PERFORM INITIALIZATION
1. Perform Inspection After Repair after repairing any leaks in the intake system.
  Refer to INITIALIZATION [10/2015 - 10/2018] , or refer to INITIALIZATION [10/2018 - 11/2019] , or refer to INITIALIZATION [11/2019 - ]
