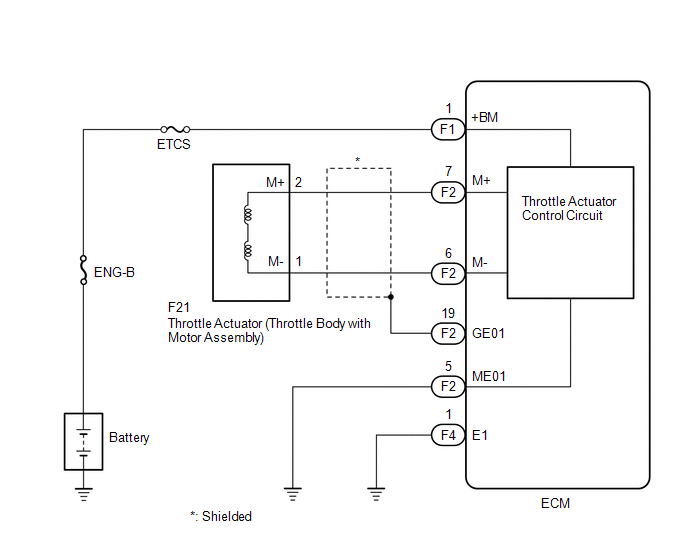

DTC P2102: Throttle Actuator Control Motor Circuit Low; DTC P2103: Throttle Actuator Control Motor Circuit High [09/2014 - 11/2017]: Wiring Diagram

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
