DTC P0724: Brake Switch "B" Circuit High [09/2014 - 11/2017]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Primary / Stop Light Switch.

   Powertrain > Engine > Data List

   Tester Display
   Stop Light Switch

5. Read the values displayed on the Techstream.

   OK

   Techstream Display	Measurement Item/Range (display)	Normal Condition
   Stop Light Switch	Stop light switch status: ON or OFF	ON: Brake pedal depressed OFF: Brake pedal released

   Result

   Proceed to
   OK
   NG

Result:

OK

CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [09/2014 - 11/2017]

Result:

NG

See step  2

1. Check the stop light switch installation.

   Refer to INSTALLATION [09/2014 - ]

   OK

   Stop light switch is installed correctly.

   Result

   Proceed to
   OK
   NG

Result:

NG

SECURELY REINSTALL STOP LIGHT SWITCH ASSEMBLY. Refer to  INSTALLATION [09/2014 - ]

Result:

OK

See step  3

1. Inspect the stop light switch assembly.

   Refer to ON-VEHICLE INSPECTION [09/2014 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE STOP LIGHT SWITCH ASSEMBLY. Refer to  REMOVAL [09/2014 - ]

Result:

OK

See step  4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

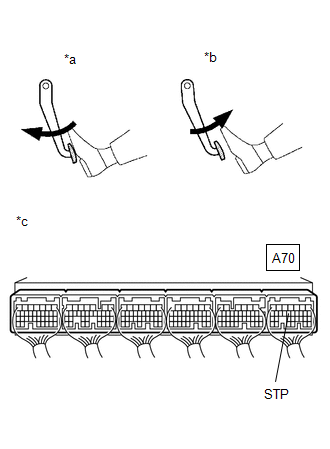

1. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Brake Pedal Operation	Specified Condition
   A70-13 (STP) - Body ground	Depressed	7.5 to 14 V
   	Released	Below 1.5 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM. Refer to  REMOVAL [09/2014 - 11/2017]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - ECM)
