Headlight Beam Level Control Actuator Circuit [09/2014 - 10/2018]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Lexus RC 350, 2018 Lexus RC 300, 2017 Lexus RC 350, 2017 Lexus RC 300, and 2017 Lexus RC 200t. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Start the engine.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / HL AutoLeveling / Active Test.
    5. Perform the Active Test according to the display on the Techstream.

      Body Electrical > HL AutoLeveling > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Drive The Leveling Motor Leveling motor upward or downward operation Stop/Down/Up Perform the Active Test with the engine started and vehicle stopped

      Body Electrical > HL AutoLeveling > Active Test

      Tester Display
      Drive The Leveling Motor

      OK

      Both headlight leveling motor LH and RH operate normally.

      Result

      Result Proceed to
      OK A
      NG (for LH Side) B
      NG (for RH Side) C

    Result:

    A

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [09/2014 - 10/2018]

    Result:

    C

    See step  4

    Result:

    B

    See step  2

  2. INSPECT HEADLIGHT UNIT ASSEMBLY LH
    1. Remove the headlight assembly LH.

      Refer to REMOVAL [09/2014 - 10/2018]

    2. Remove the headlight light control ECU sub-assembly LH.

      Refer to REMOVAL [09/2014 - 10/2018]

    3. Disconnect the headlight leveling motor LH connector.
    4. Measure the resistance according to the value(s) in the table below.

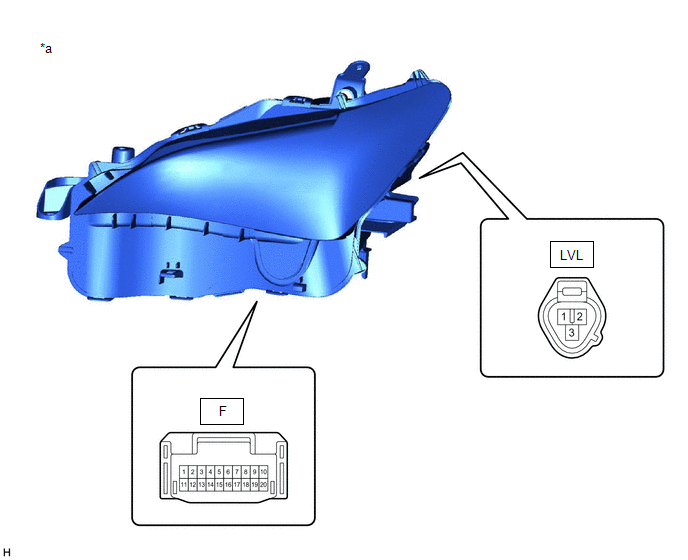

      GTY502194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Headlight Unit Assembly LH)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      LVL-1 - F-17 Always Below 1 Ω
      LVL-2 - F-8 Always Below 1 Ω
      LVL-3 - F-20 Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY LH. Refer to  DISASSEMBLY [09/2014 - 10/2018]

    Result:

    OK

    See step  3

  3. REPLACE HEADLIGHT LEVELING MOTOR LH
    1. Replace the headlight leveling motor LH with a new or known good one.

      Refer to DISASSEMBLY [09/2014 - 10/2018]

    2. Perform the Active Test according to the display on the Techstream.

      Body Electrical > HL AutoLeveling > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Drive The Leveling Motor Leveling motor upward or downward operation Stop/Down/Up Perform the Active Test with the engine started and vehicle stopped

      Body Electrical > HL AutoLeveling > Active Test

      Tester Display
      Drive The Leveling Motor

      OK

      Headlight leveling motor LH operates normally.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (HEADLIGHT LEVELING MOTOR LH WAS DEFECTIVE)

    Result:

    NG

    REPLACE HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [09/2014 - 10/2018]

  4. INSPECT HEADLIGHT UNIT ASSEMBLY RH
    1. Remove the headlight assembly RH.

      Refer to REMOVAL [09/2014 - 10/2018]

    2. Remove the headlight light control ECU sub-assembly RH.

      Refer to REMOVAL [09/2014 - 10/2018]

    3. Disconnect the headlight leveling motor RH connector.
    4. Measure the resistance according to the value(s) in the table below.

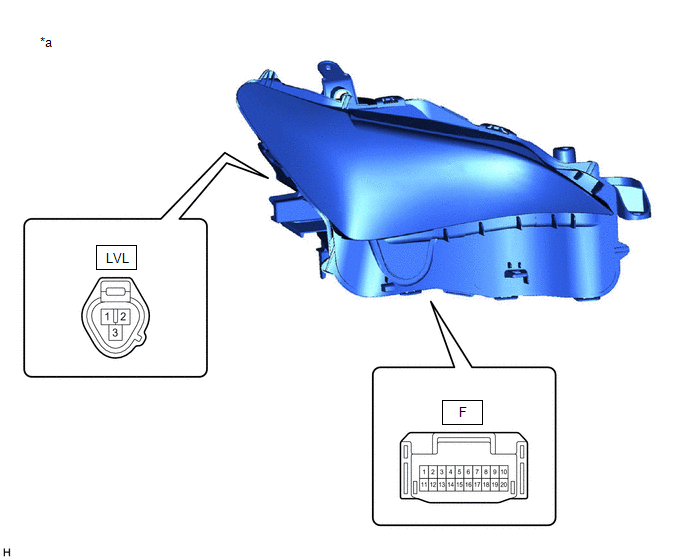

      GTY519894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component without harness connected
      (Headlight Unit Assembly RH)      		 - -

      Standard Resistance

      Tester Connection Condition Specified Condition
      LVL-1 - F-17 Always Below 1 Ω
      LVL-2 - F-8 Always Below 1 Ω
      LVL-3 - F-20 Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE HEADLIGHT UNIT ASSEMBLY RH. Refer to  DISASSEMBLY [09/2014 - 10/2018]

    Result:

    OK

    See step  5

  5. REPLACE HEADLIGHT LEVELING MOTOR RH
    1. Replace the headlight leveling motor RH with a new or known good one.

      Refer to DISASSEMBLY [09/2014 - 10/2018]

    2. Perform the Active Test according to the display on the Techstream.

      Body Electrical > HL AutoLeveling > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Drive The Leveling Motor Leveling motor upward or downward operation Stop/Down/Up Perform the Active Test with the engine started and vehicle stopped

      Body Electrical > HL AutoLeveling > Active Test

      Tester Display
      Drive The Leveling Motor

      OK

      Headlight leveling motor RH operates normally.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (HEADLIGHT LEVELING MOTOR RH WAS DEFECTIVE)

    Result:

    NG

    REPLACE HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [09/2014 - 10/2018]
