Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 4 [10/2015 - 11/2017]

  2. REMOVE PURGE VALVE (PURGE VSV)
    1. Slide the clip and disconnect the No. 2 fuel vapor feed hose from the purge valve (purge VSV).

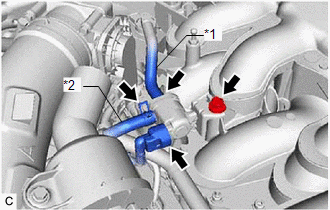

      GTY508490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Fuel Vapor Feed Hose
      *2 No. 2 Fuel Vapor Feed Hose
    2. Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
    3. Disconnect the purge valve (purge VSV) connector.
    4. Remove the bolt and purge valve (purge VSV) from the intake air surge tank assembly.
