Installation [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL PURGE VALVE (PURGE VSV)

Install the purge valve (purge VSV) to the intake air surge tank assembly with the bolt.

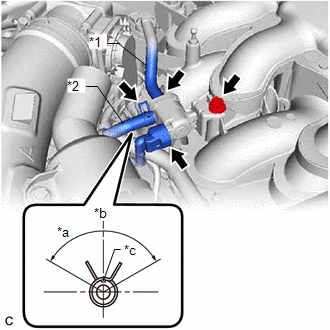

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 1 Fuel Vapor Feed Hose
*2	No. 2 Fuel Vapor Feed Hose
*a	120°
*b	Upper Side
*c	Paint Mark

Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

Connect the purge valve (purge VSV) connector.
Connect the No. 1 fuel vapor feed hose to the purge valve (purge VSV).
Connect the No. 2 fuel vapor feed hose to the purge valve (purge VSV) and slide the clip to secure it.
HINT:

Engage the clip within the area shown in the illustration.

INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 117 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 118 [10/2015 - 11/2017]
