Components [09/2014 - 11/2017]

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

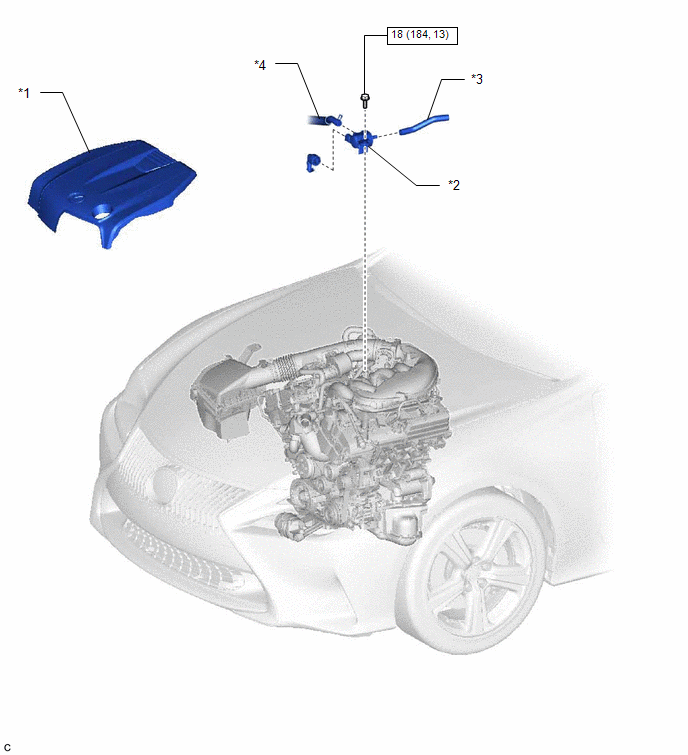

Fig 1: Purge Valve Replacement Components With Torque Specifications [09/2014 - 11/2017]

Callout	Description	Callout	Description
*1	V-BANK COVER SUB-ASSEMBLY	*2	PURGE VALVE (PURGE VSV)
*3	NO. 1 FUEL VAPOR FEED HOSE	*4	NO. 2 FUEL VAPOR FEED HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
