Components [09/2014 - 11/2017]

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

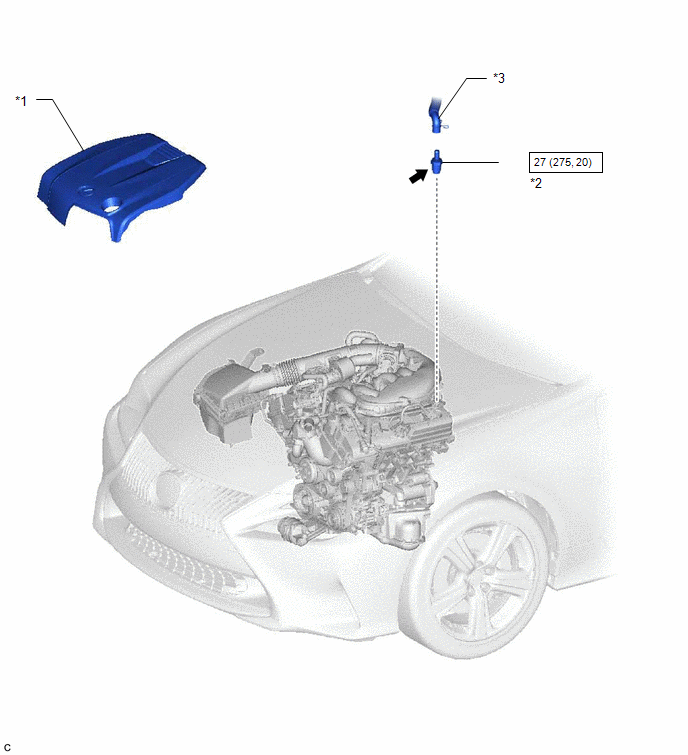

Fig 1: PCV Valve Replacement Components With Torque Specifications [09/2014 - 11/2017]

Callout	Description	Callout	Description
*1	V-BANK COVER SUB-ASSEMBLY	*2	PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
*3	VENTILATION HOSE ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque		Adhesive 1324
*	Precoated part	-	-
