Installation [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LEAK DETECTION PUMP SUB-ASSEMBLY

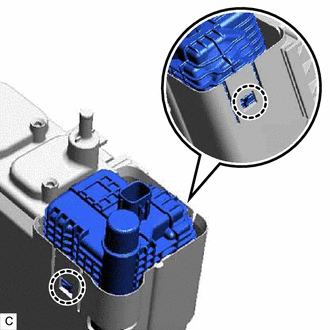

    1. Engage the 2 claws to install a new leak detection pump sub-assembly to the charcoal canister sub-assembly.
      GTY500905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not allow foreign matter such as grease, oil or water to adhere to the O-rings.
      • Ensure that the claws are engaged properly.

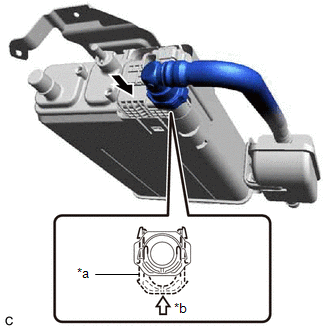

    2. Push the charcoal canister outlet tube sub-assembly onto the leak detection pump sub-assembly and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (leak detection pump sub-assembly) before performing this work.
      • After connecting the charcoal canister outlet tube sub-assembly, check that the charcoal canister outlet tube sub-assembly is securely connected by pulling on the tube connector.
      GTY497632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Push
  2. INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)
    1. Install the canister (charcoal canister assembly) with the 3 nuts and clip.

      Torque: 5.5 N.m (56 kgf/cm, 49 in.lbf)

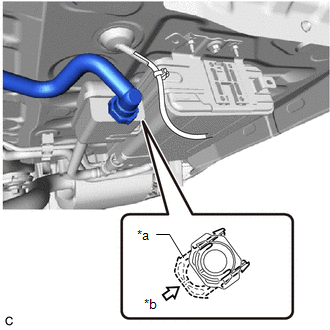

    2. Push the air line tube onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe canister (charcoal canister assembly) before performing this work.
      • After connecting the air line tube, check that the air line tube is securely connected by pulling on the tube connector.
      GTY511904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Push
    3. Install the purge line hose to the canister (charcoal canister assembly) and slide the 2 clips to secure them.

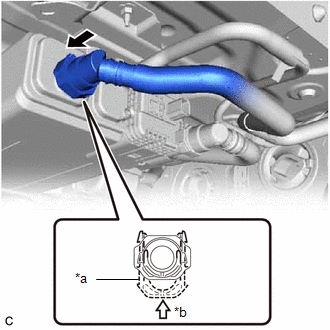

    4. Push the vent line hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
      • After connecting the vent line hose, check that the vent line hose is securely connected by pulling on the tube connector.
      GTY502968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      *b Push
    5. Connect the leak detection pump sub-assembly connector.
    6. Engage the 4 wire harness clamps to the canister (charcoal canister assembly).
  3. INSTALL NO. 1 FLOOR UNDER COVER ASSEMBLY
    1. Install the No. 1 floor under cover assembly with the 4 clips and 5 grommets.
