On-Vehicle Inspection [10/2015 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT INTAKE SYSTEM

HINT:

Perform Inspection After Repair after repairing vacuum leaks in the intake system.

Refer to INITIALIZATION [09/2014 - 11/2017]

Check that there are no vacuum leaks at the points shown in the illustration.

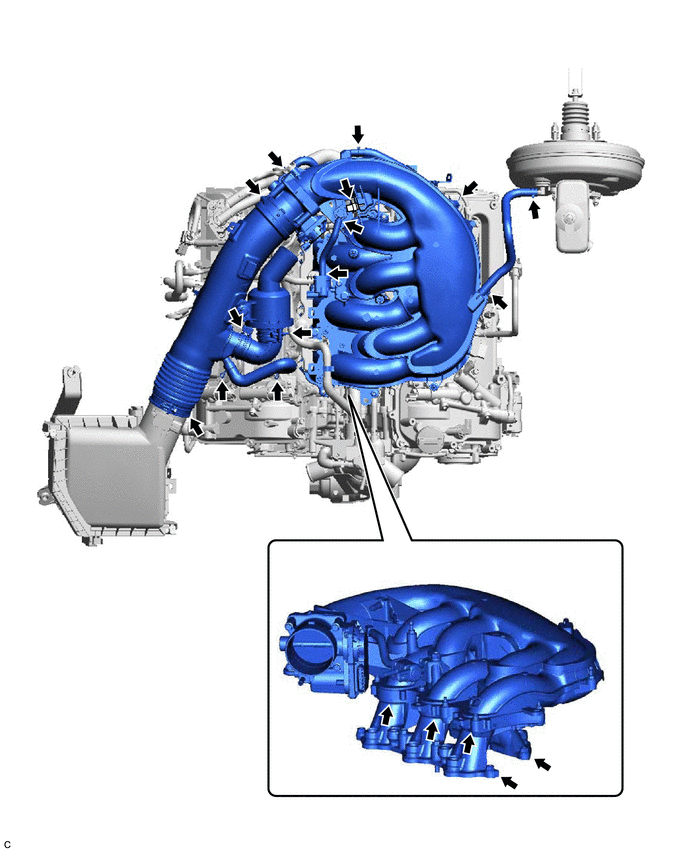

for Intake Air Sound Creator:

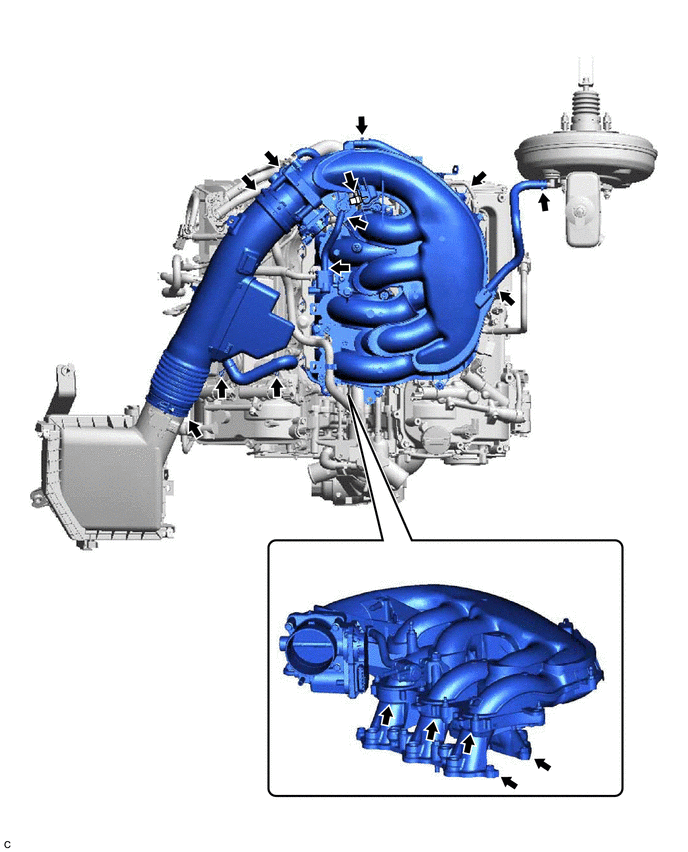

for Intake Air Resonator:

PERFORM INITIALIZATION
1. Perform Inspection After Repair after repairing vacuum leaks in the intake system.
  Refer to INITIALIZATION [09/2014 - 11/2017]
