Catalyst Location
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

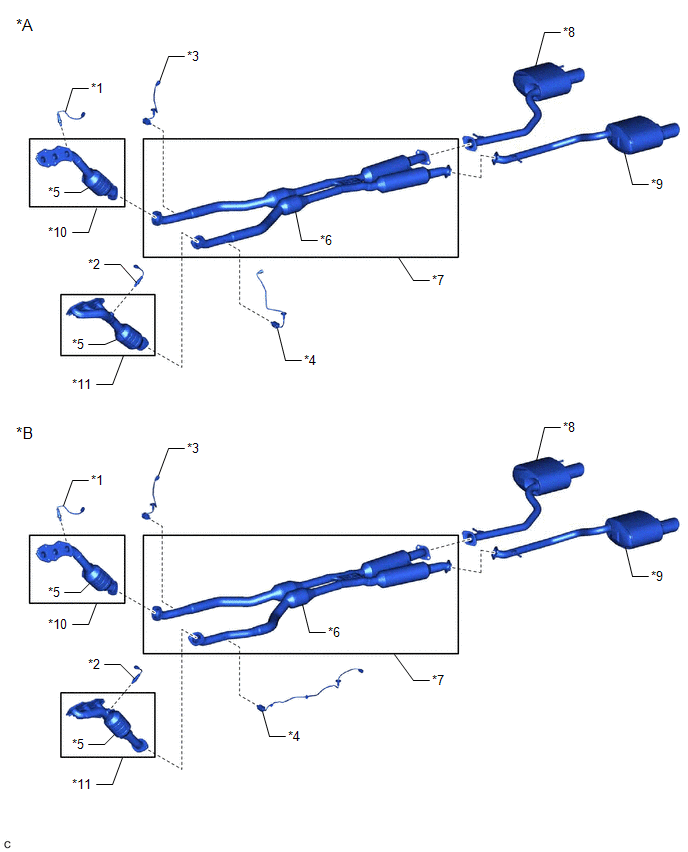

| *A | for 2WD Models | *B | for AWD Models |
| *1 | Air Fuel Ratio Sensor (Bank 1 Sensor 1) | *2 | Air Fuel Ratio Sensor (Bank 2 Sensor 1) |
| *3 | Heated Oxygen Sensor (Bank 1 Sensor 2) | *4 | Heated Oxygen Sensor (Bank 2 Sensor 2) |
| *5 | TWC: Front Catalyst | *6 | TWC: Rear Catalyst |
| *7 | Front Exhaust Pipe Assembly | *8 | Tail Exhaust Pipe Assembly |
| *9 | Tail Exhaust Pipe LH | *10 | Exhaust Manifold Sub-assembly RH |
| *11 | Exhaust Manifold Sub-assembly LH | - | - |
NOTE:
- If DTC P0420 is output, replace the exhaust manifold sub-assembly RH (*10) and the front exhaust pipe assembly (*7) together when catalyst replacement is necessary (Excluding air fuel ratio sensor*1 and heated oxygen sensor*3).
- If DTC P0430 is output, replace the exhaust manifold sub-assembly LH (*11) and the front exhaust pipe assembly (*7) together when catalyst replacement is necessary (Excluding air fuel ratio sensor*2 and heated oxygen sensor*4).
