Components [09/2020 - ]
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

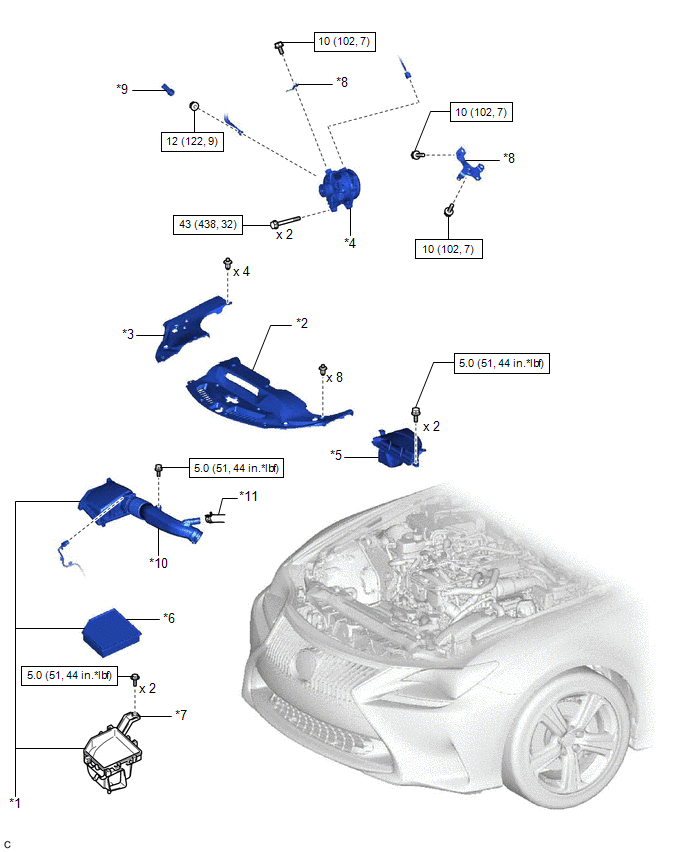

| Callout |
Description |
Callout |
Description |
| *1 |
AIR CLEANER ASSEMBLY WITH NO. 2 AIR CLEANER HOSE |
*2 |
COOL AIR INTAKE DUCT SEAL |
| *3 |
ENGINE ROOM SIDE COVER |
*4 |
GENERATOR ASSEMBLY |
| *5 |
INLET NO. 1 AIR CLEANER |
*6 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
| *7 |
AIR CLEANER CASE SUB-ASSEMBLY |
*8 |
WIRE HARNESS CLAMP BRACKET |
| *9 |
TERMINAL CAP |
*10 |
AIR CLEANER CAP WITH NO. 2 AIR CLEANER HOSE |
| *11 |
NO. 1 VENTILATION HOSE |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

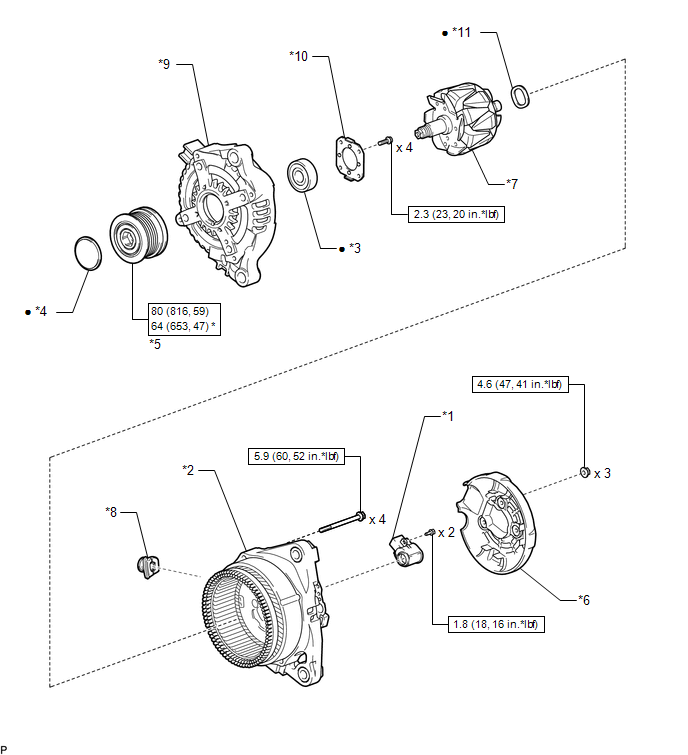

| Callout |
Description |
Callout |
Description |
| *1 |
GENERATOR BRUSH HOLDER ASSEMBLY |
*2 |
GENERATOR COIL ASSEMBLY |
| *3 |
GENERATOR DRIVE END FRAME BEARING |
*4 |
GENERATOR PULLEY CAP |
| *5 |
GENERATOR PULLEY WITH CLUTCH |
*6 |
GENERATOR REAR END COVER |
| *7 |
GENERATOR ROTOR ASSEMBLY |
*8 |
GENERATOR TERMINAL INSULATOR |
| *9 |
GENERATOR DRIVE END FRAME |
*10 |
RETAINER PLATE |
| *11 |
WASHER |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with SST |
| • |
Non-reusable part |
- |
- |
