Parts Location [10/2015 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

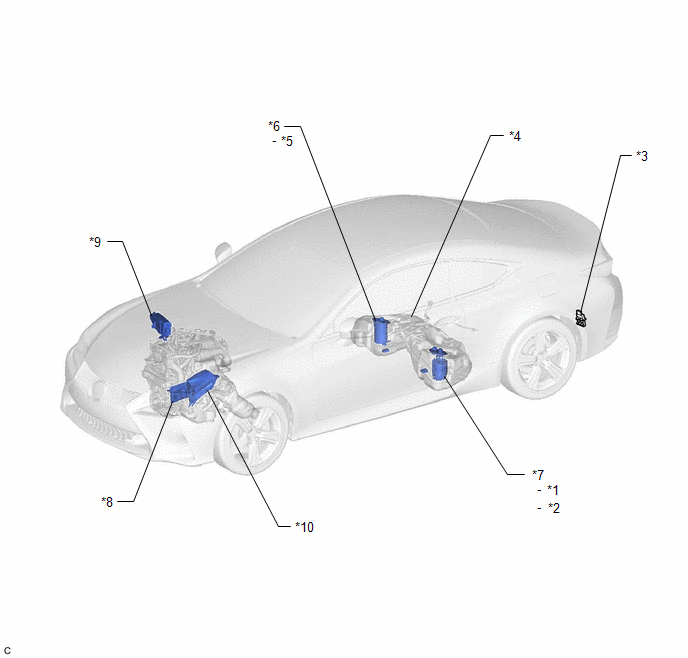

| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | FUEL PUMP (for Low Pressure) |
| *3 | FUEL PUMP CONTROL ECU | *4 | FUEL TANK ASSEMBLY |
| *5 | NO. 2 FUEL SENDER GAUGE ASSEMBLY | *6 | FUEL TANK VENT TUBE ASSEMBLY |
| *7 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | *8 | ECM |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - P/I-B FUSE - ENG-B FUSE - FUEL PMP FUSE |
*10 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - SEMICONDUCTOR POWER INTEGRATION ECU (EFI MAIN RELAY) (EFI-MAIN FUSE) (EFI NO. 2 FUSE) (P INJ FUSE) - EFI MAIN NO. 2 RELAY - INJ RELAY - INJ FUSE |
