Parts Location [10/2015 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

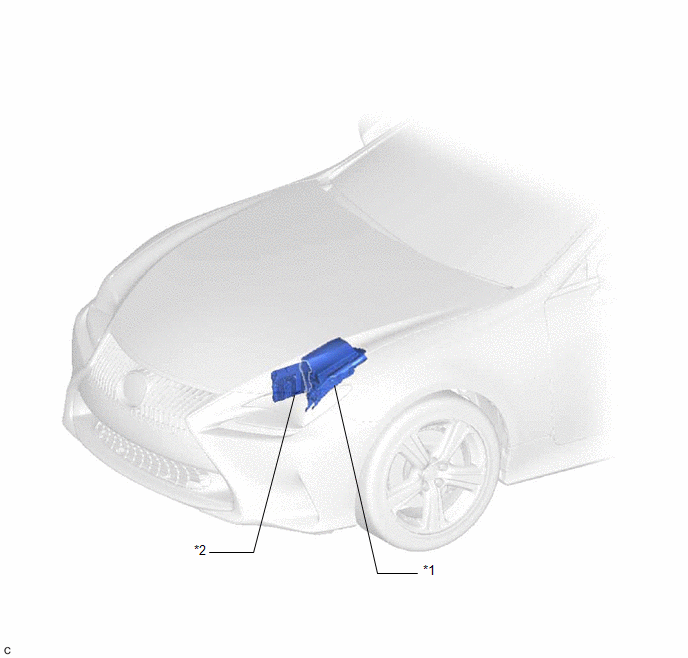

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY
- EFI NO. 2 FUSE
- EFI-MAIN FUSE
- EFI MAIN RELAY

ECM

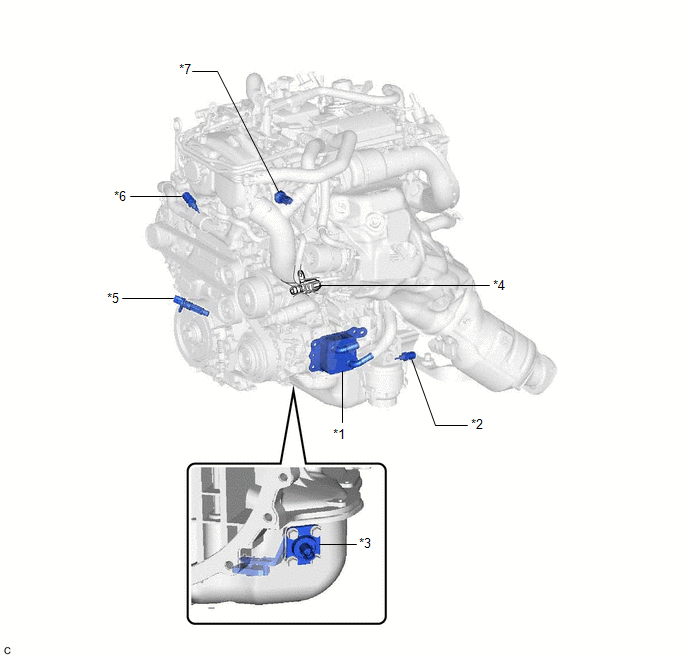

*1	OIL COOLER ASSEMBLY	*2	ENGINE OIL TEMPERATURE SENSOR
*3	ENGINE OIL LEVEL SENSOR	*4	OIL PRESSURE SWITCHING VALVE ASSEMBLY
*5	CRANKSHAFT POSITION SENSOR	*6	ENGINE COOLANT TEMPERATURE SENSOR
*7	OIL PRESSURE SENDER GAUGE ASSEMBLY	-	-
