Parts Location [11/2017 - 10/2018]: Illustration

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Lexus RC 350, 2018 Lexus RC 300, 2017 Lexus RC 350, 2017 Lexus RC 300, and 2017 Lexus RC 200t. However, it is still accessible from the selected car via links, so may be relevant.
GTY803776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

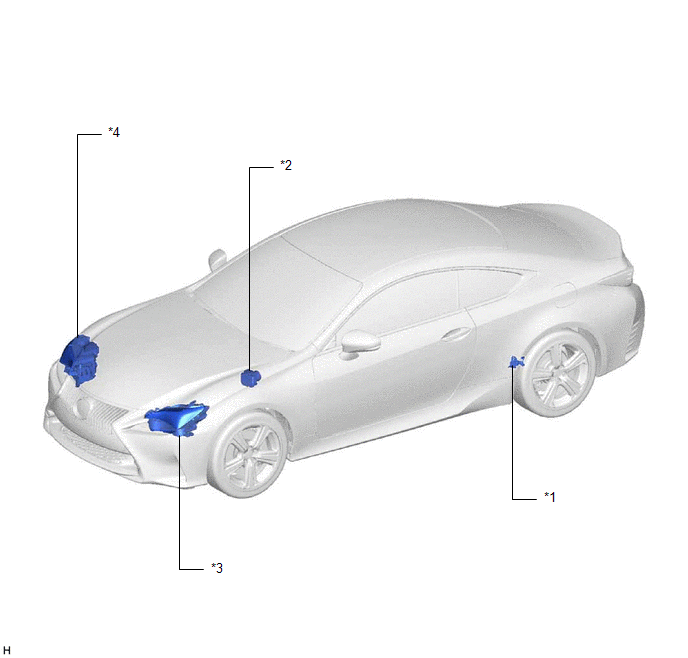

*1 REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH *2 BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)
*3 HEADLIGHT ASSEMBLY LH
- HEADLIGHT LEVELING MOTOR LH
- HEADLIGHT CORD LH		 *4 HEADLIGHT ASSEMBLY RH
- HEADLIGHT LEVELING MOTOR RH
- HEADLIGHT CORD RH


GTY509223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

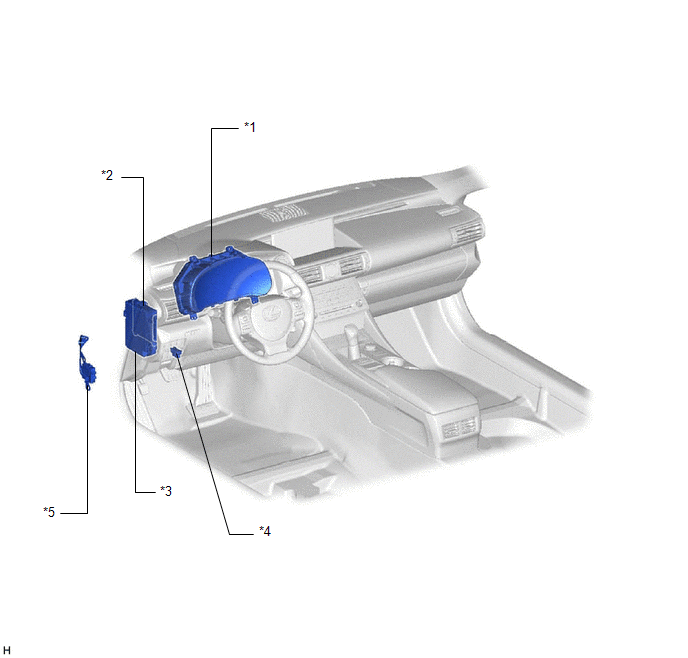

*1 COMBINATION METER ASSEMBLY *2 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 2 FUSE		 *4 DLC3
*5 HEADLIGHT LEVELING ECU ASSEMBLY - -
