Components [09/2014 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

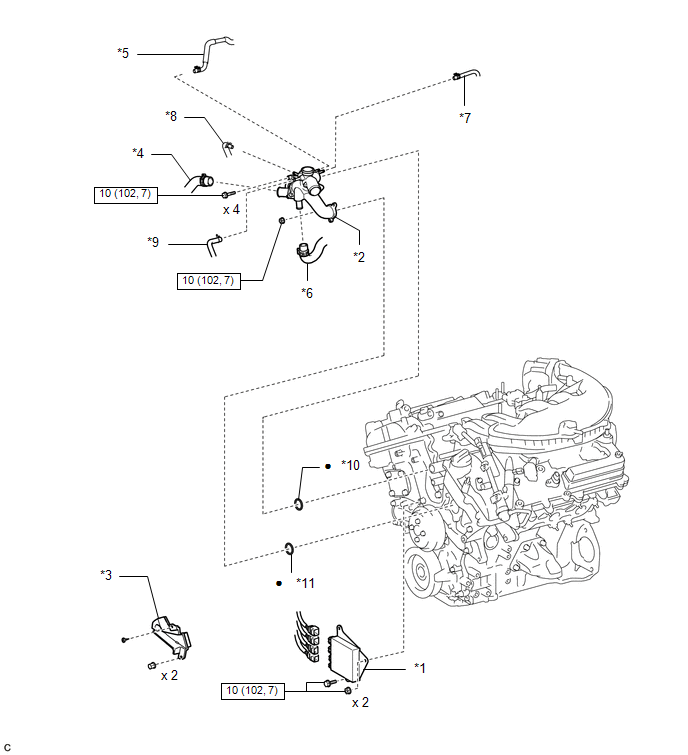

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
INJECTOR DRIVER |
*2 |
WATER INLET |
| *3 |
NO. 1 ENGINE COVER |
*4 |
NO. 2 RADIATOR HOSE |
| *5 |
NO. 2 WATER BY-PASS HOSE |
*6 |
NO. 3 WATER BY-PASS HOSE |
| *7 |
NO. 4 WATER BY-PASS HOSE |
*8 |
NO. 6 WATER BY-PASS HOSE |
| *9 |
RADIATOR RESERVE TANK HOSE |
*10 |
WATER OUTLET PIPE O-RING |
| *11 |
NO. 1 WATER INLET HOUSING GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |

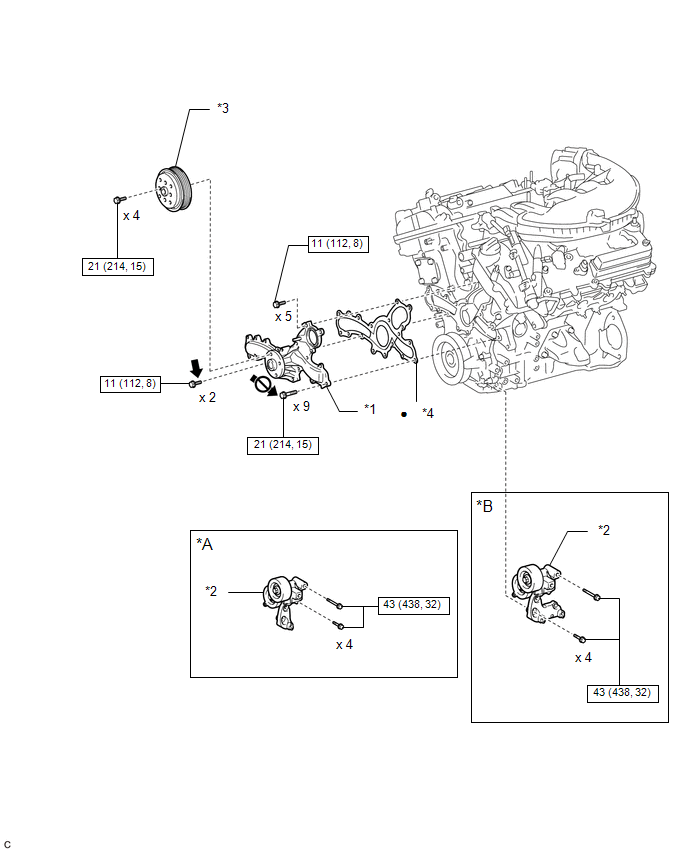

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for AWD |
*B |
for 2WD |
| *1 |
ENGINE WATER PUMP ASSEMBLY |
*2 |
V-RIBBED BELT TENSIONER ASSEMBLY |
| *3 |
WATER PUMP PULLEY |
*4 |
WATER PUMP GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1344 |
* |
Precoated part |
|
Do not apply lubricants (to the threaded parts) |
- |
- |
