Components [09/2014 - 10/2015]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

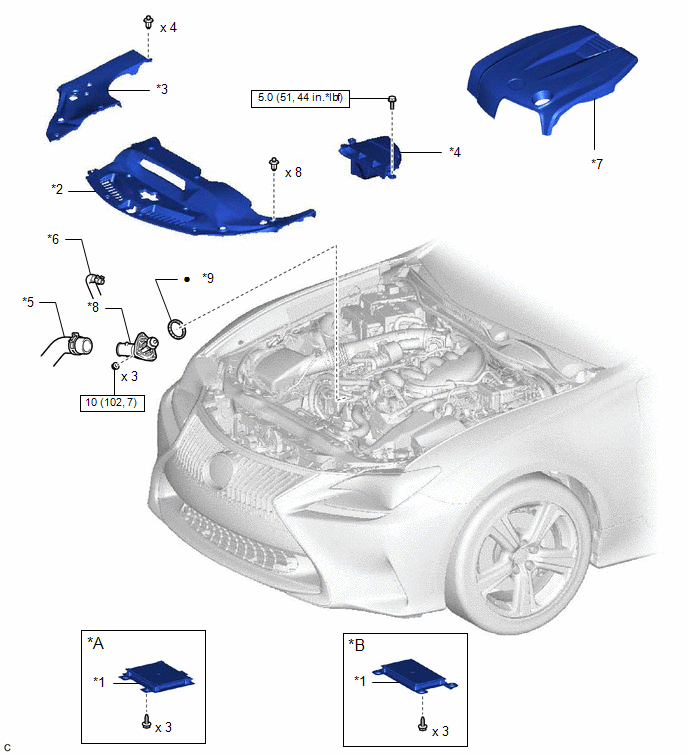

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | *B | for AWD |
| *1 | CENTER NO. 4 ENGINE UNDER COVER | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | ENGINE ROOM SIDE COVER | *4 | INLET NO. 1 AIR CLEANER |
| *5 | NO. 2 RADIATOR HOSE | *6 | NO. 6 WATER BY-PASS HOSE |
| *7 | V-BANK COVER SUB-ASSEMBLY | *8 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *9 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
