Components [10/2015 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

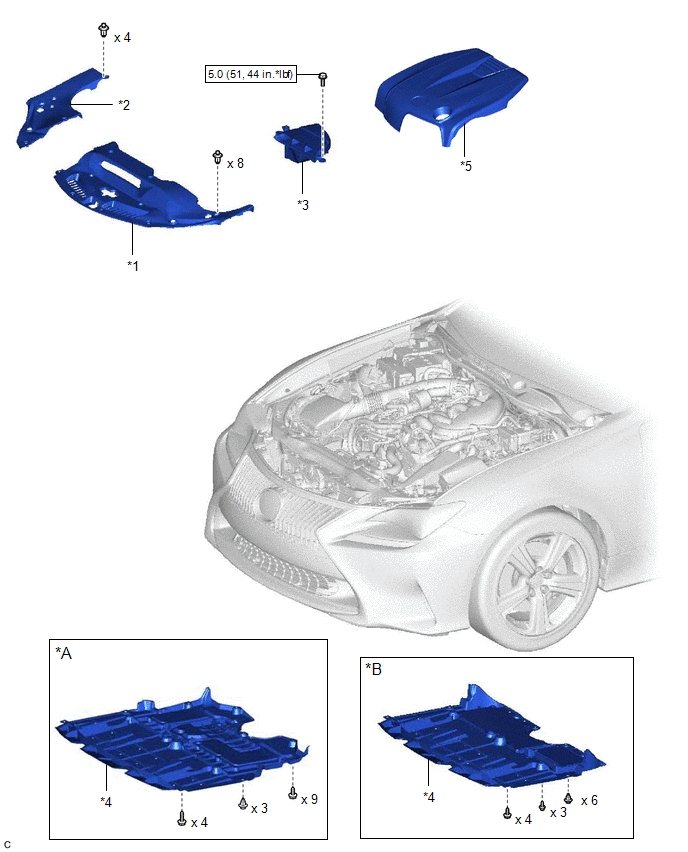

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for 2WD |
*B |
for AWD |
| *1 |
COOL AIR INTAKE DUCT SEAL |
*2 |
ENGINE ROOM SIDE COVER |
| *3 |
INLET NO. 1 AIR CLEANER |
*4 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
| *5 |
V-BANK COVER SUB-ASSEMBLY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |

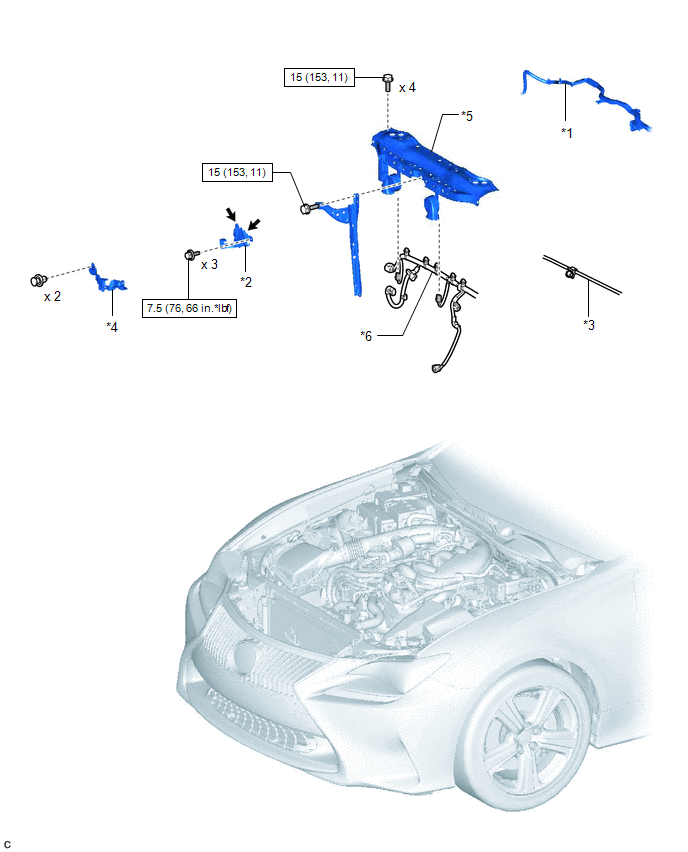

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
ENGINE ROOM MAIN WIRE |
*2 |
HOOD LOCK ASSEMBLY |
| *3 |
HOOD LOCK CONTROL CABLE ASSEMBLY |
*4 |
HOOD LOCK RELEASE LEVER PROTECTOR |
| *5 |
UPPER RADIATOR SUPPORT |
*6 |
WIRE HARNESS |
|
N.m (kgf/cm, ft.lbf): Specified torque |
|
MP grease |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
COOLER CONDENSER ASSEMBLY |
*2 |
ENGINE ROOM ECU OUTLET DUCT |
| *3 |
LOWER RADIATOR SUPPORT |
*4 |
NO. 1 RADIATOR HOSE |
| *5 |
NO. 2 RADIATOR HOSE |
*6 |
RADIATOR ASSEMBLY |
| *7 |
RADIATOR RESERVE TANK ASSEMBLY |
*8 |
RADIATOR SUPPORT CUSHION |
| *9 |
FAN SHROUD ASSEMBLY |
- |
- |
