Components [10/2015 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

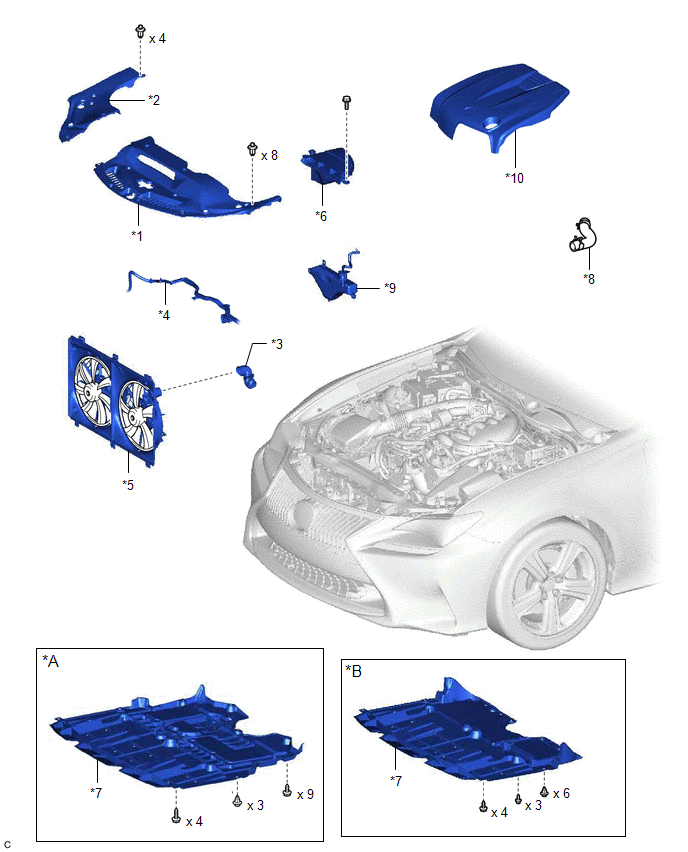

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 2WD | *B | for AWD |
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | ENGINE ROOM COVER SIDE |
| *3 | ENGINE ROOM ECU OUTLET DUCT | *4 | ENGINE ROOM MAIN WIRE |
| *5 | FAN SHROUD ASSEMBLY | *6 | INLET NO. 1 AIR CLEANER |
| *7 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *8 | NO. 1 RADIATOR HOSE |
| *9 | RADIATOR RESERVE TANK ASSEMBLY | *10 | V-BANK COVER SUB-ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

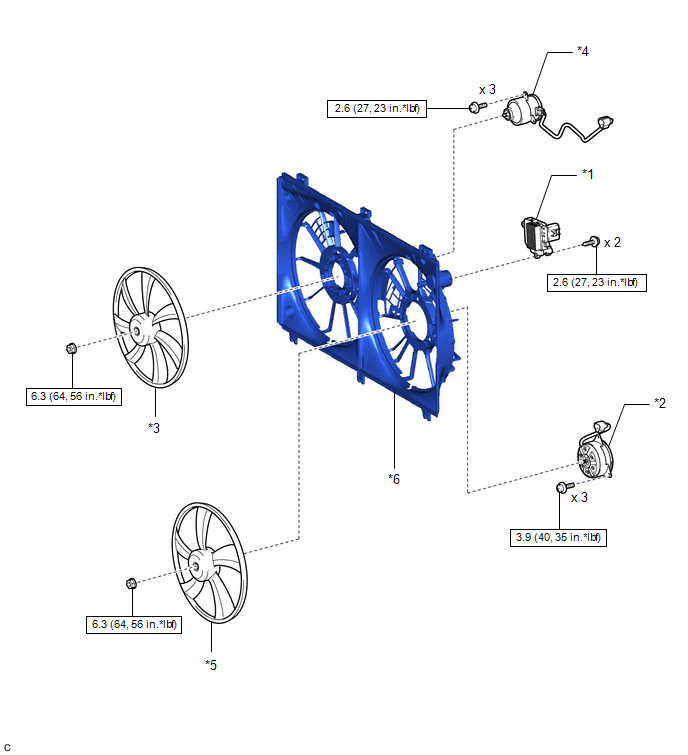

Fig 2: Cooling Fan Motor Replacement Components With Torque Specifications [10/2015 - 11/2017] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COOLING FAN ECU | *2 | COOLING FAN MOTOR |
| *3 | FAN | *4 | NO. 2 COOLING FAN MOTOR |
| *5 | NO. 2 FAN | *6 | FAN SHROUD |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
