Reassembly [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL OIL PUMP ROTOR SET

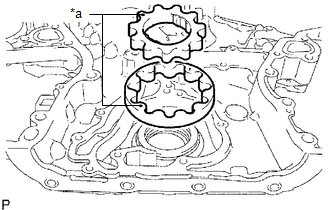

Coat the oil pump rotor set with engine oil and place the oil pump rotor set into the timing chain cover sub-assembly with the marks facing up (oil pump cover side). Check that the oil pump rotor set rotates smoothly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Mark

INSTALL OIL PUMP COVER

Install the oil pump cover with the 8 bolts.

Torque: 9.1 N.m (93 kgf/cm, 81 in.lbf)

Bolt Length

Item	Length
Bolt (A)	22 mm (0.866 in.)
Bolt (B)	40 mm (1.57 in.)

INSTALL OIL PUMP RELIEF VALVE
1. Coat the oil pump relief valve with engine oil.
2. Insert the oil pump relief valve and oil pump relief valve spring into the oil pump cover hole.
3. Using a 27 mm socket wrench, install the oil pump relief valve plug.
  Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)
