Components [09/2014 - 10/2015]
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for 2WD |
*B |
for AWD |
| *1 |
COMPRESSOR AND MAGNETIC CLUTCH |
*2 |
ENGINE WIRE |
| *3 |
V-RIBBED BELT |
*4 |
GENERATOR ASSEMBLY |
| *5 |
NO. 2 ENGINE COVER |
*6 |
OIL FILTER BRACKET |
| *7 |
V-RIBBED BELT TENSIONER ASSEMBLY |
*8 |
BRACKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
IGNITION COIL ASSEMBLY |
*2 |
INJECTOR DRIVER |
| *3 |
NO. 1 ENGINE COVER |
*4 |
NO. 2 IDLER PULLEY SUB-ASSEMBLY |
| *5 |
WATER PUMP PULLEY |
*6 |
NO. 2 IDLER PULLEY COVER PLATE |
| *7 |
NO. 2 FUEL TUBE SUB-ASSEMBLY |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *A |
for 2WD |
*B |
for AWD |
| *1 |
NO. 2 OIL PAN SUB-ASSEMBLY |
*2 |
OIL PAN SUB-ASSEMBLY |
| *3 |
OIL STRAINER SUB-ASSEMBLY |
*4 |
OIL STRAINER WITH PIPE SUB-ASSEMBLY |
| *5 |
GASKET |
*6 |
O-RING |
| *7 |
OIL PAN DRAIN PLUG |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
WATER INLET ASSEMBLY |
*2 |
NO. 3 WATER BY-PASS HOSE |
| *3 |
NO. 4 WATER INLET BY-PASS HOSE |
*4 |
NO. 2 WATER BY-PASS HOSE |
| *5 |
WATER OUTLET PIPE O-RING |
*6 |
NO. 6 WATER BY-PASS HOSE |
| *7 |
NO. 1 WATER INLET HOUSING GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
CYLINDER HEAD COVER SUB-ASSEMBLY |
*2 |
CYLINDER HEAD COVER SUB-ASSEMBLY LH |
| *3 |
NO. 1 OIL PIPE |
*4 |
NO. 2 OIL PIPE |
| *5 |
SPARK PLUG TUBE GASKET |
*6 |
CYLINDER HEAD COVER SEAL WASHER |
| *7 |
CYLINDER HEAD COVER GASKET |
*8 |
GASKET |
| *9 |
OIL CONTROL VALVE FILTER RH |
*10 |
OIL CONTROL VALVE FILTER LH |
| *11 |
CYLINDER HEAD COVER GASKET LH |
*12 |
OIL PIPE UNION |
| *13 |
OIL CHECK VALVE BOLT |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

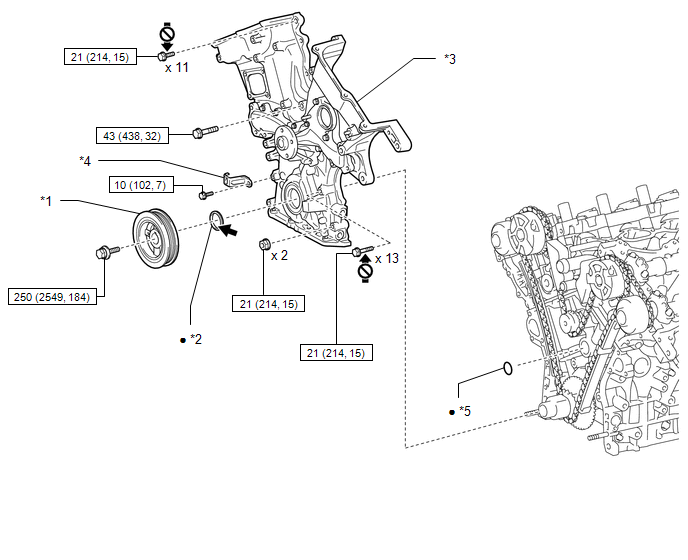

| Callout |
Description |
Callout |
Description |
| *1 |
CRANKSHAFT PULLEY |
*2 |
TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL |
| *3 |
TIMING CHAIN COVER SUB-ASSEMBLY |
*4 |
WIRE HARNESS CLAMP BRACKET |
| *5 |
GASKET |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
MP Grease |
|
Do not apply lubricants to the threaded parts |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
OIL PUMP COVER |
*2 |
OIL PUMP RELIEF VALVE |
| *3 |
OIL PUMP ROTOR SET |
*4 |
TIMING CHAIN COVER SUB-ASSEMBLY |
| *5 |
OIL PUMP RELIEF VALVE SPRING |
*6 |
OIL PUMP RELIEF VALVE PLUG |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
