Removal [09/2014 - 11/2017]: Procedure

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE OIL

    See step  1 [09/2014 - 10/2015], or see step  1 [10/2015 - 11/2017]

  2. REMOVE FRONT SUSPENSION MEMBER BRACE (for 2WD)

    Refer to PROCEDURE - Step 14 [09/2014 - 10/2015] , or refer to PROCEDURE - Step 14 [10/2015 - 11/2017]

  3. REMOVE ENGINE OIL LEVEL SENSOR

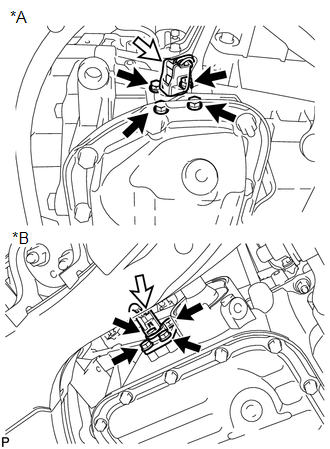

    1. Disconnect the engine oil level sensor connector.
      GTY507446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 2WD
      *B for AWD
    2. Remove the 4 bolts and engine oil level sensor.

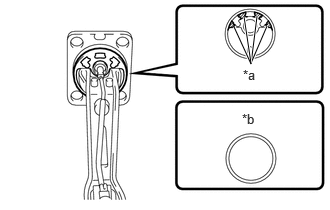

    3. Cut off the gasket as shown in the illustration.
      GTY512609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cutting Position
      *b Supply Part
    4. Remove the gasket from the engine oil level sensor.

      HINT:

      After cutting off the portions of the gasket shown in the illustration, remove only the outer part of the gasket.
