Inspection [09/2014 - 11/2017]: Procedure
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

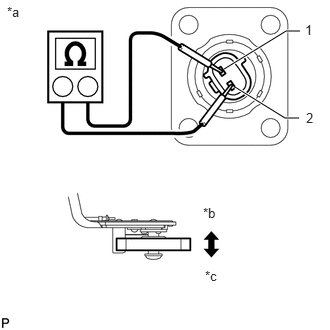

- INSPECT ENGINE OIL LEVEL SENSOR
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 ON Below 1 Ω OFF 1 kΩ or higher *a Component without harness connected
(Engine Oil Level Sensor)*b ON *c OFF If the result is not as specified, replace the engine oil level sensor.
- Measure the resistance according to the value(s) in the table below.
