Components [09/2014 - 11/2017]

WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.

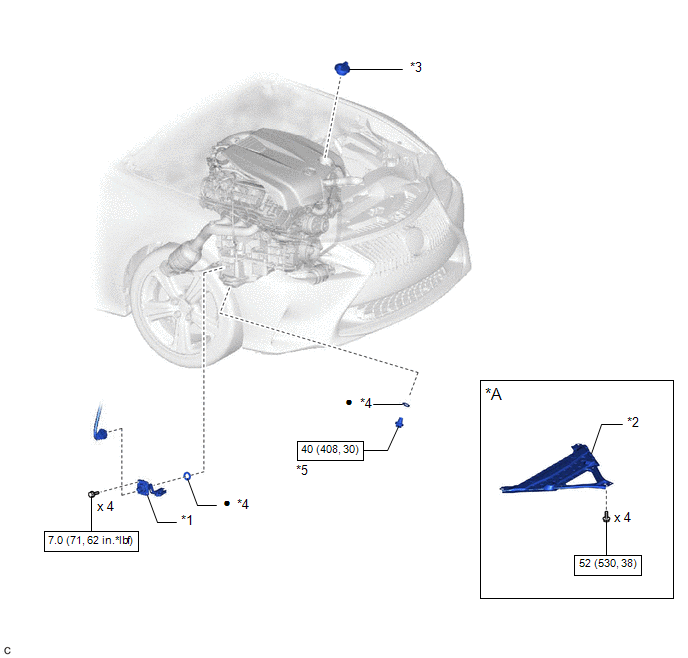

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications [09/2014 - 11/2017]

Callout	Description	Callout	Description
*A	for 2WD	-	-
*1	ENGINE OIL LEVEL SENSOR	*2	FRONT SUSPENSION MEMBER BRACE
*3	OIL FILLER CAP SUB-ASSEMBLY	*4	GASKET
*5	OIL PAN DRAIN PLUG	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
